Toote nimi

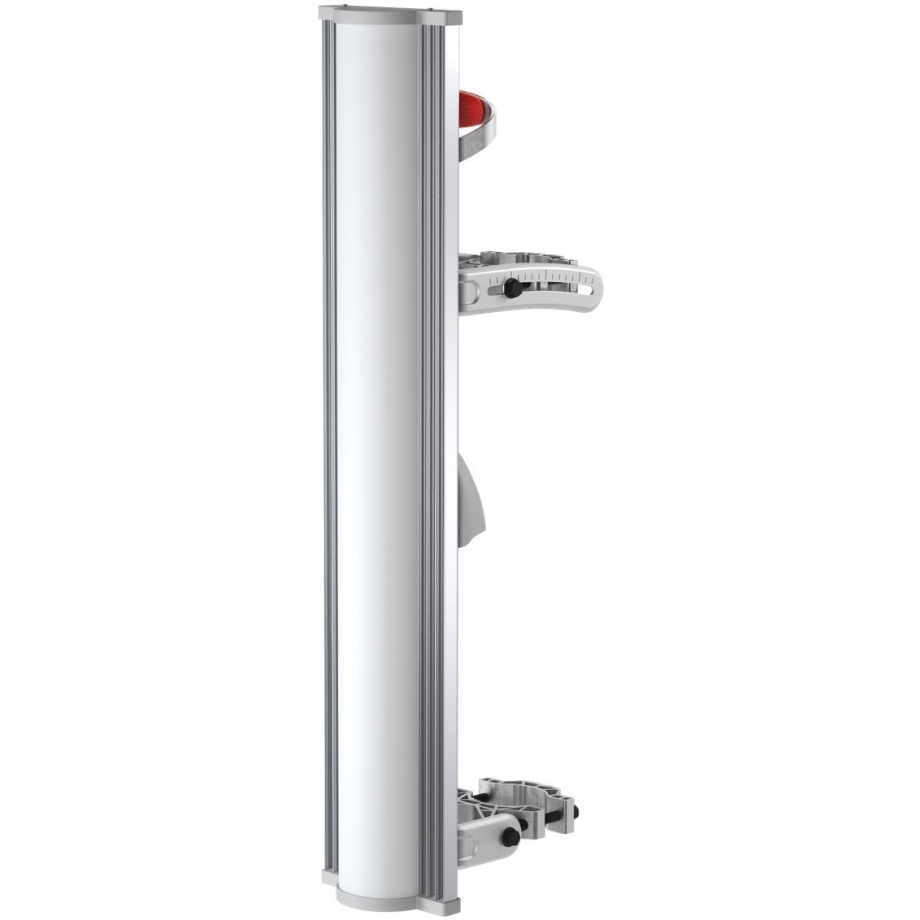

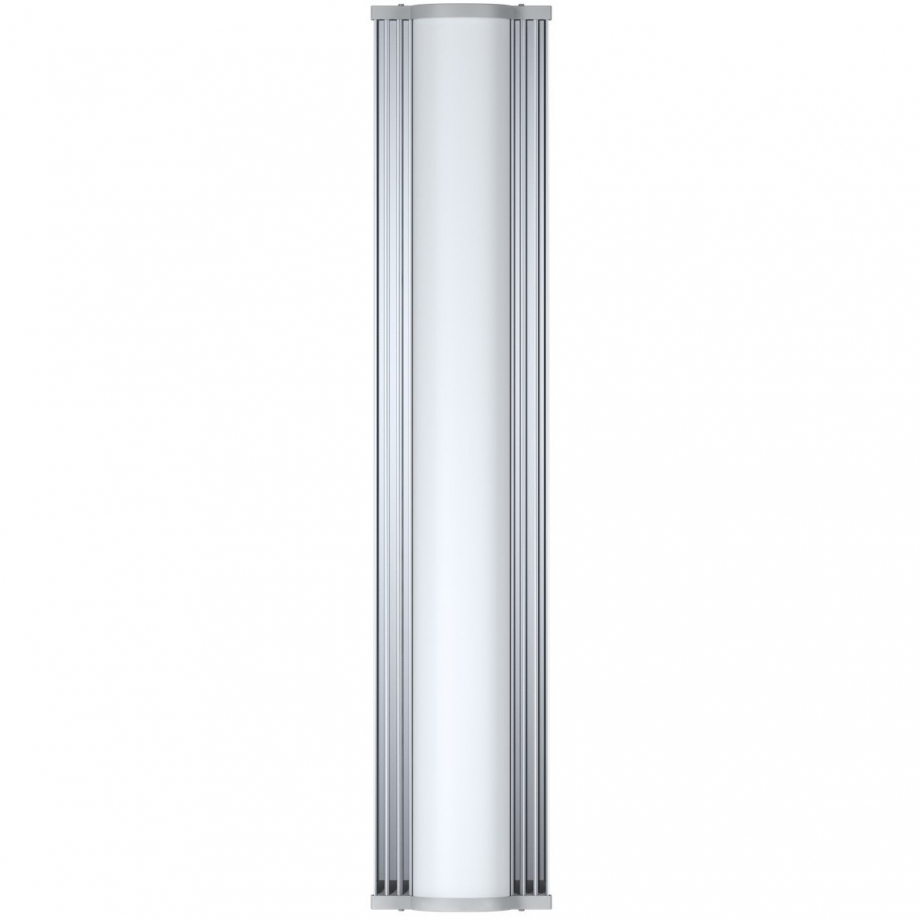

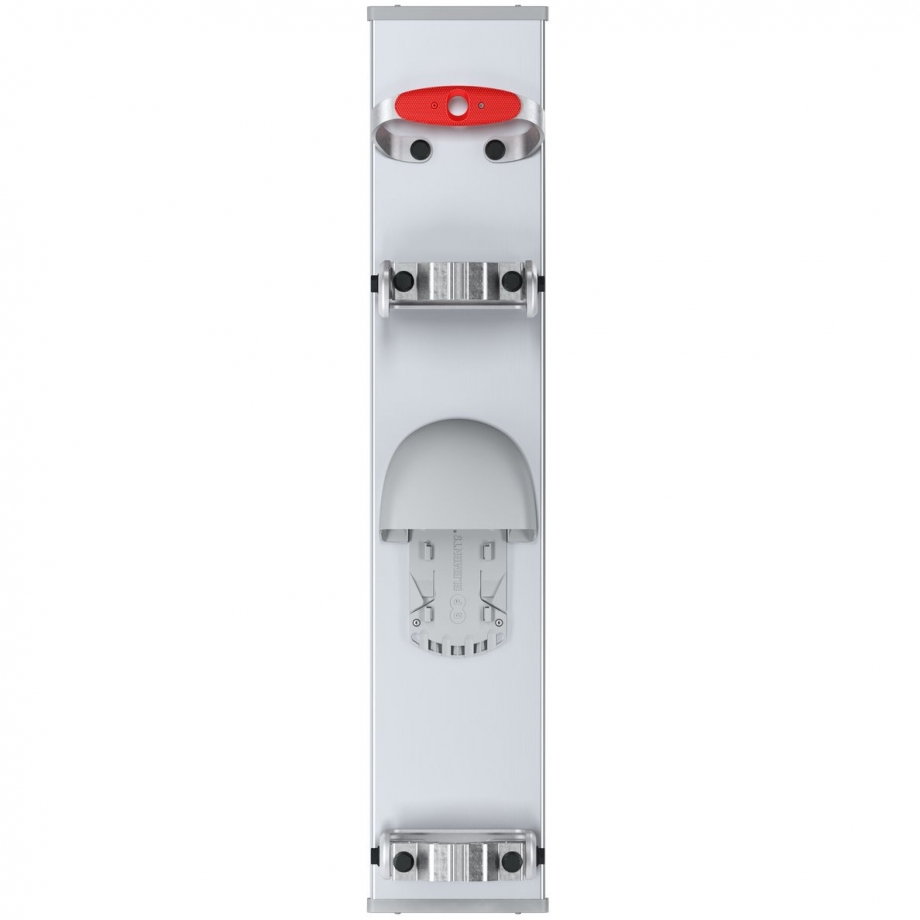

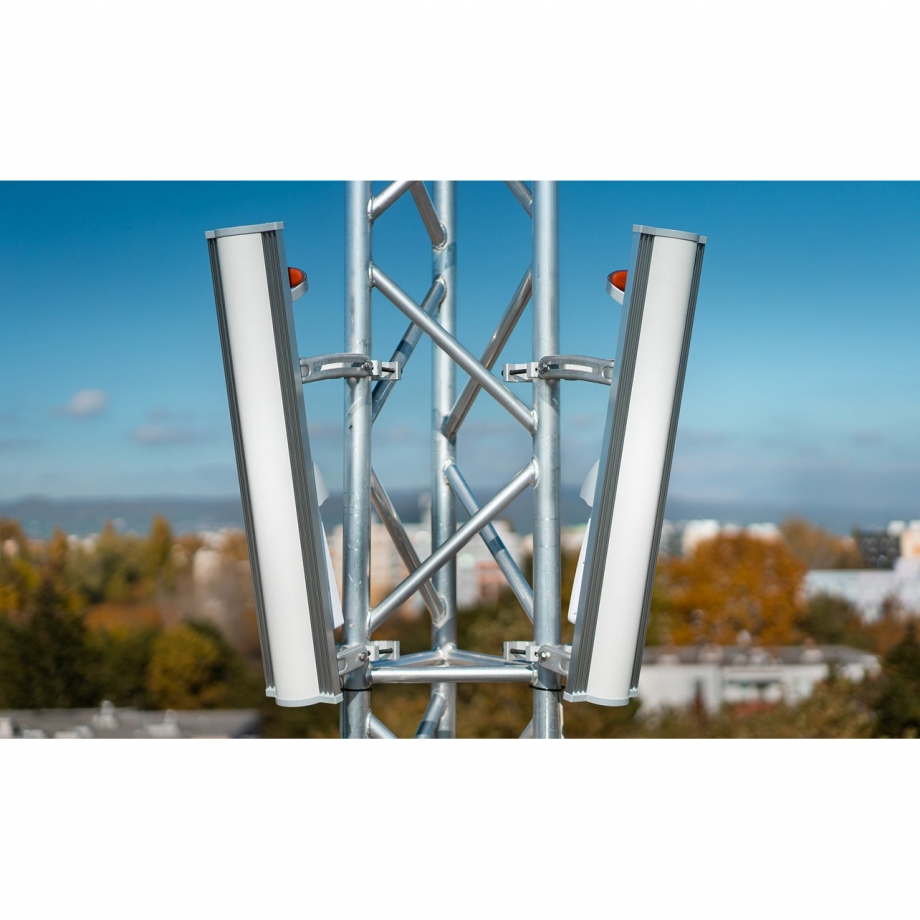

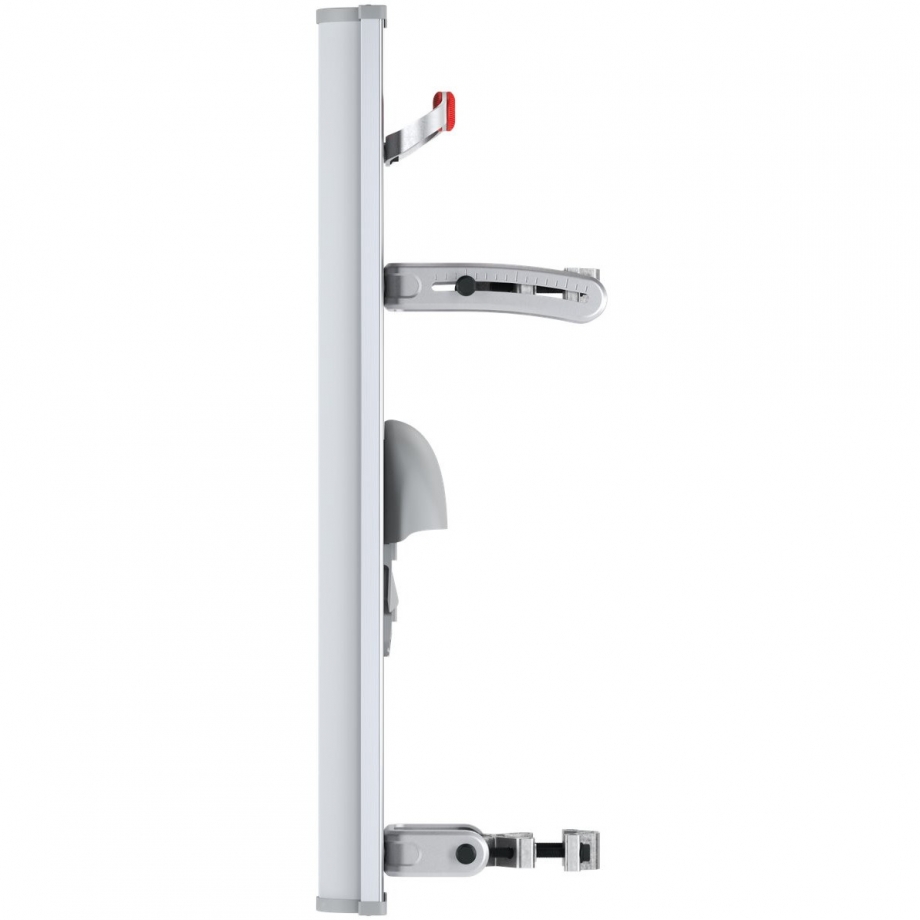

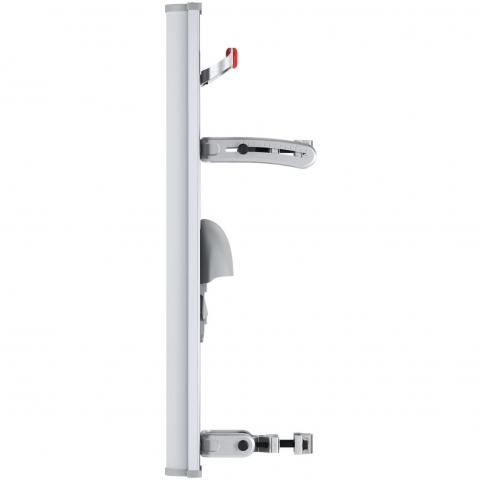

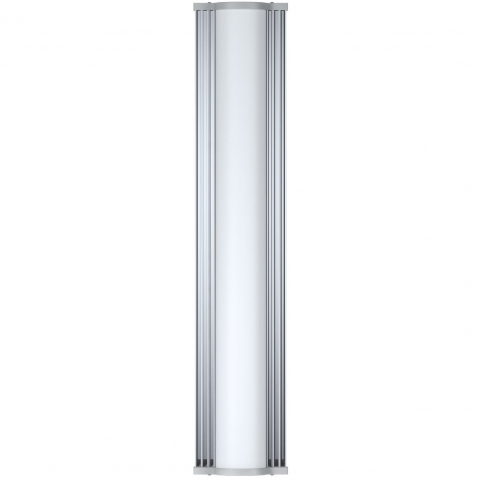

Array sektori antenn 100°, 2x RP-SMA
Garantii
?
24 kuu
Tootja osa number
AS-5-20
EAN
8588006459616
Array sektoriantenn 100° 2x RP-SMA | 5150–5850 MHz sektorantenn BackShield™ tehnoloogiaga
laost otsas
?
202.27 €
202.27 €
Saadaolevad alternatiivid
Detailne kirjeldus
Tehnilised andmed
Ühilduvad tooted
Spetsifikatsioonid
Antenn
Antenni Disain
Sector
Traadita Antenni Sagedusvahemik Ja Võimendus
5.15 - 5.85 (GHz) 20 (dBi)
Kiirguse laius
100 ° Vertikaalne, 100 ° Horisontaalne
Polarisatsioon
Kahekordne Lineaarne
VSWR
< 1.7
Impedants
50 Ω
F/B suhe
> 30 dB
Pistik
RF pistikud
(2) RP-SMA Female
Füüsikalised Parameetrid
Materjal
Roostevaba, Alumiinium, ABS plastikust
Sissepääsu kaitse kood
IP55
Mõõde
804 x 257 x 160 mm
Kaal
3.5 kg
Töötemperatuur
-35 °C kuni 55 °C
Keskkond
Välistingimustes
Paigaldamise meetod
Hinnatud Tuule kiirus
160 km/h
