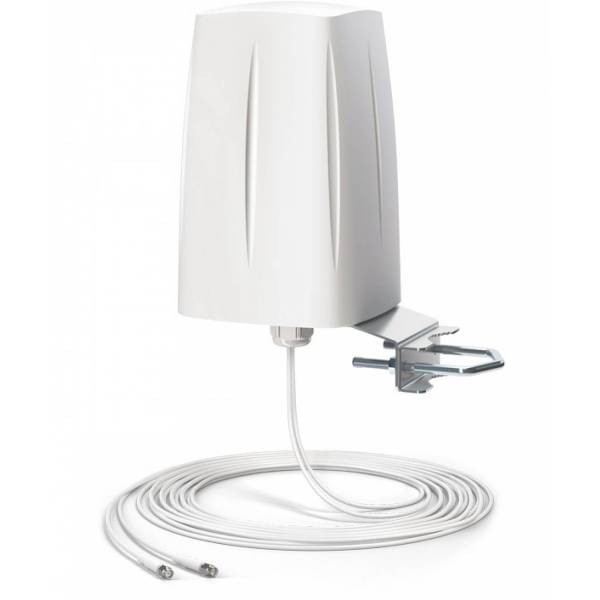

QuOmni LTE MIMO 2x2, kaabel 5m
Selle üksuse tootmine on lõpetatud
Soovitame kasutada allpool esitatud toodet
Saadaolevad alternatiivid
Detailne kirjeldus
Tehnilised andmed
Ühilduvad tooted
Spetsifikatsioonid
Mobiilsidevõrk
Mobiilsidevõrgu genereerimine
2G (GSM), 3G (UMTS), 4G (LTE)
Antenn
Antenni Disain
Kuppel
Mobiilse Antenni Sagedusvahemik Ja Võimendus
0.694 - 0.960 (GHz) 2 (dBi), 1.7 - 2.2 (GHz) 2 (dBi), 2.2 - 2.7 (GHz) 4 (dBi)
Kiirguse laius
35 ° Vertikaalne, 360 ° Horisontaalne
Polarisatsioon
Vertikaalne
Kaabli Pikkus
5 m
VSWR
< 2.0
Impedants
50 Ω
Pistik
RF pistikud
(2) SMA Male
Füüsikalised Parameetrid
Värv
Valge
Materjal
ABS plastikust
Sissepääsu kaitse kood
IP67
Mõõde
240 x 160 x 160 mm
Kaal
1.5 kg
Töötemperatuur
-40 °C kuni 75 °C
Keskkond
Välistingimustes
Paigaldamise meetod
Pole Mount
