Ubiquiti UniFi Switch Hi-Capacity Aggregation
Ubiquiti Elite Distributor
laos
?
880.82 €
880.82 €
Ubiquiti Elite Distributor
Detailne kirjeldus

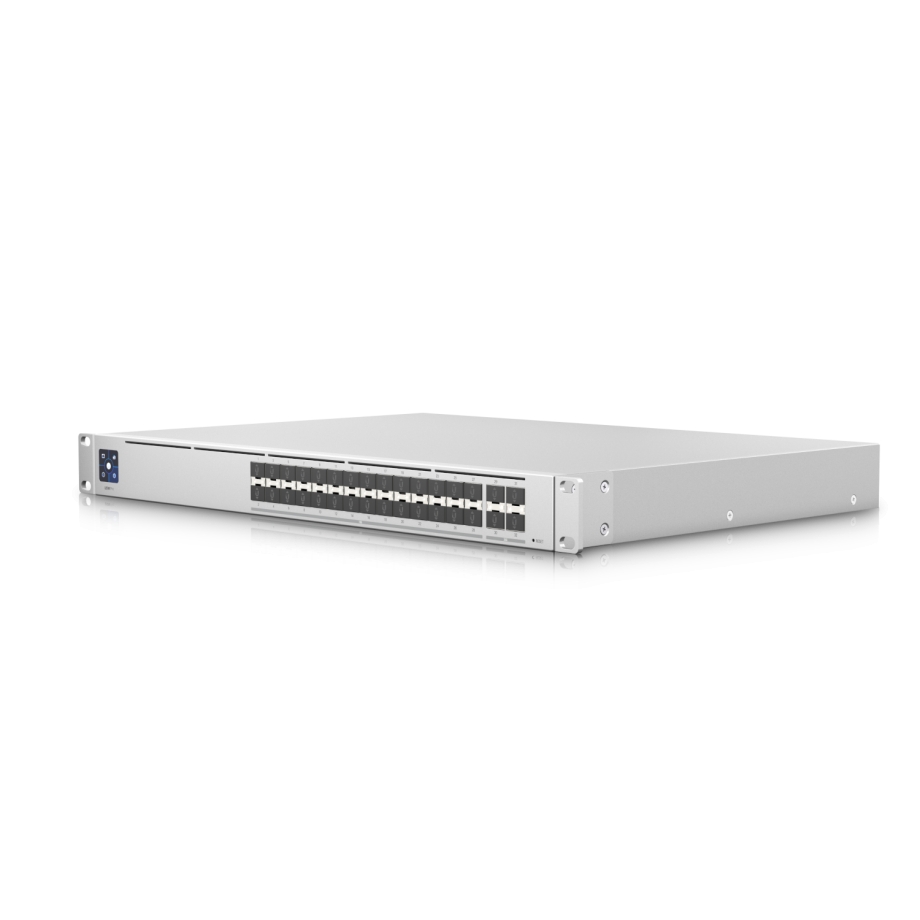

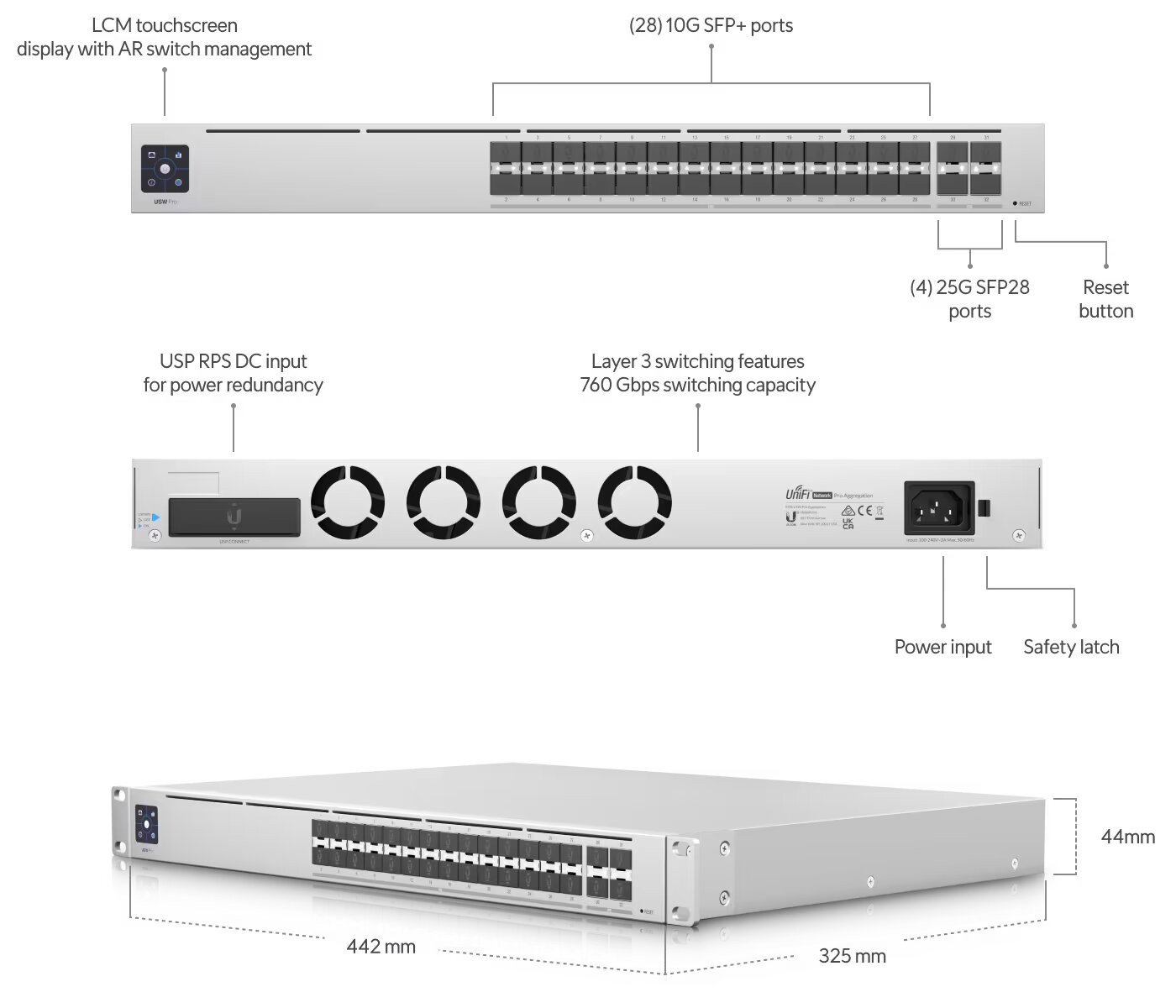

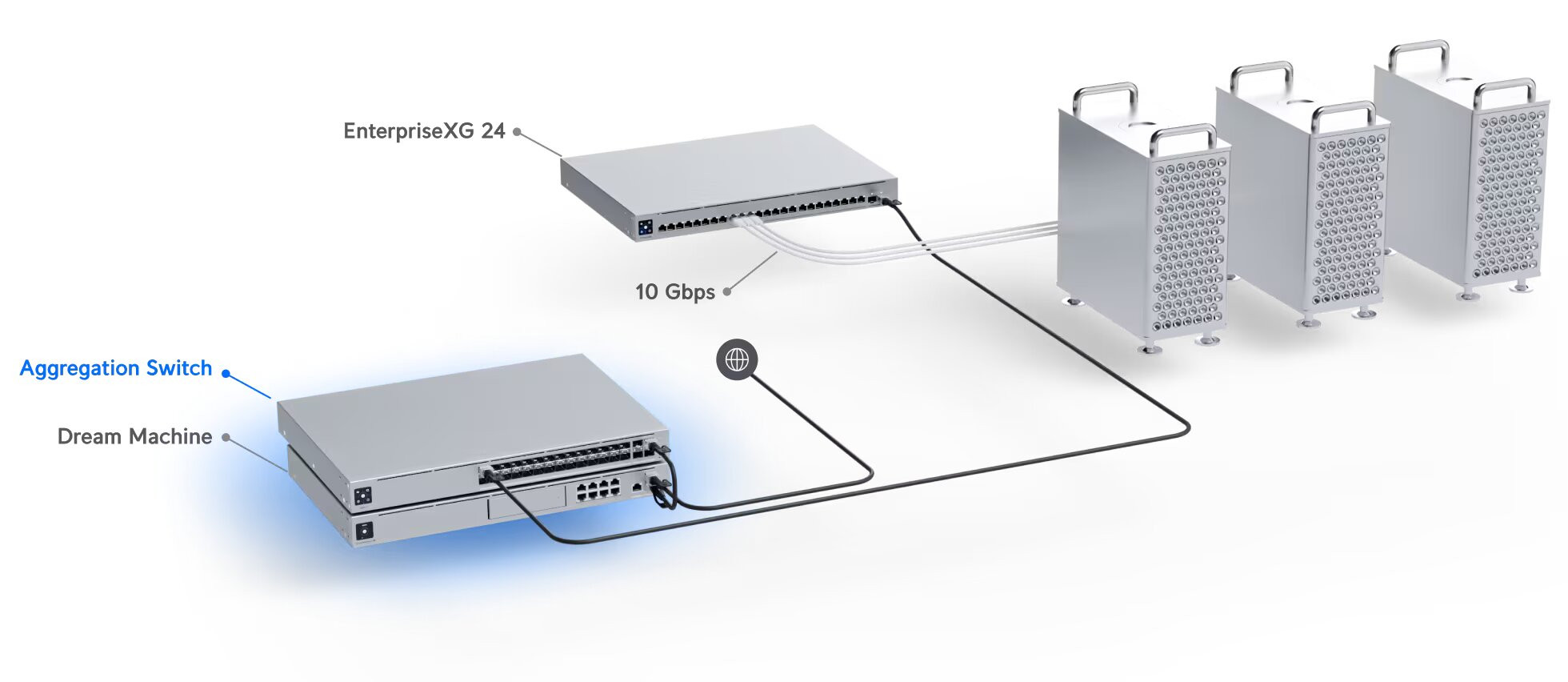

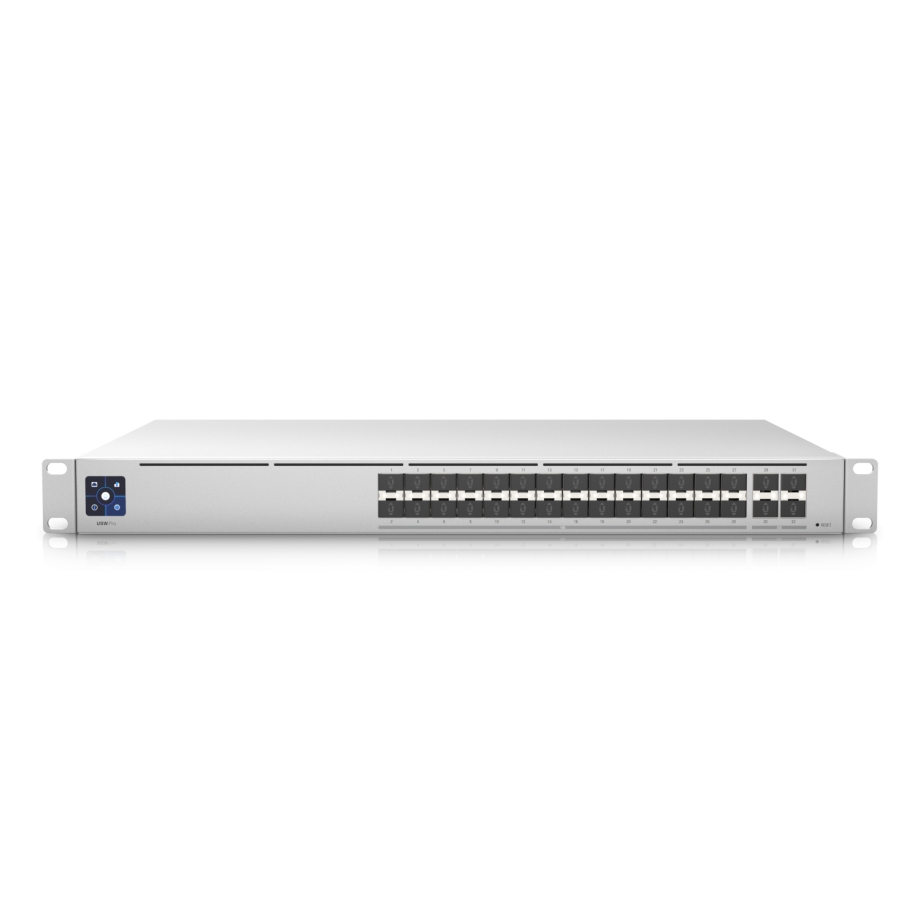

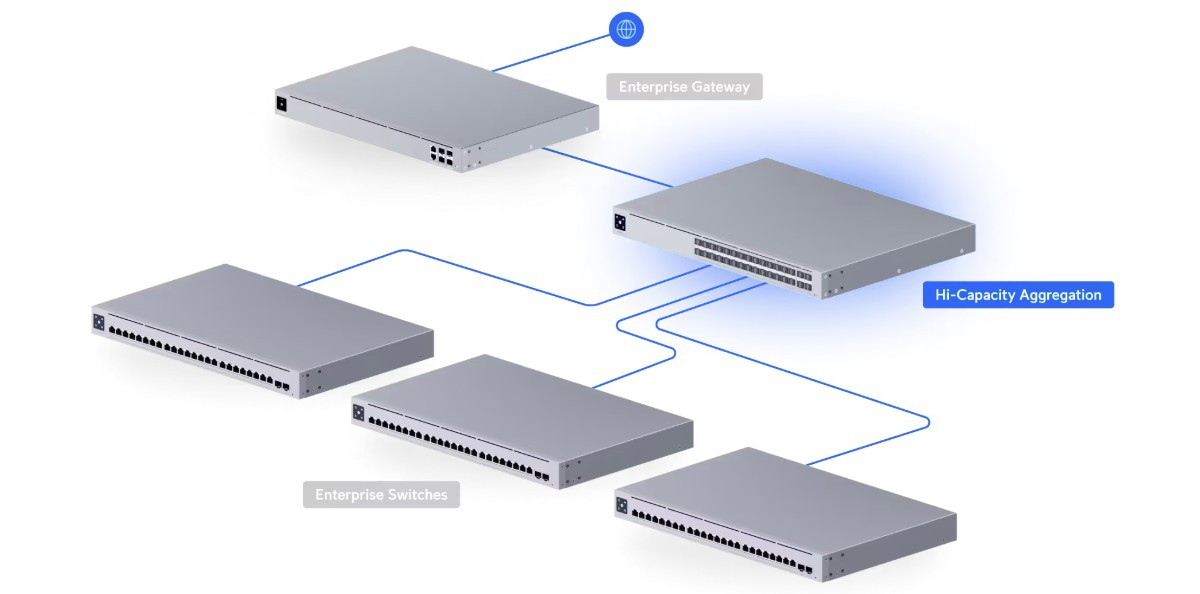

Switch Pro Aggregation on täielikult hallatav Layer 3 kommutaator, millel on (28) 10G SFP+ porti ja (4) 25G SFP28 porti, mis on mõeldud võrgu kommutatsioonivõimsuse ja jõudluse suurendamiseks, luues suure ribalaiusega koondusühendusi. See rack-paigaldatav kommutaator pakub ka 760 Gbps kommutatsioonivõimsust ja on varustatud 1,3-tollise LCM-värvilise puuteekraaniga, mis näitab ülevaatlikult süsteemi ja ühenduse põhilisi andmeid.

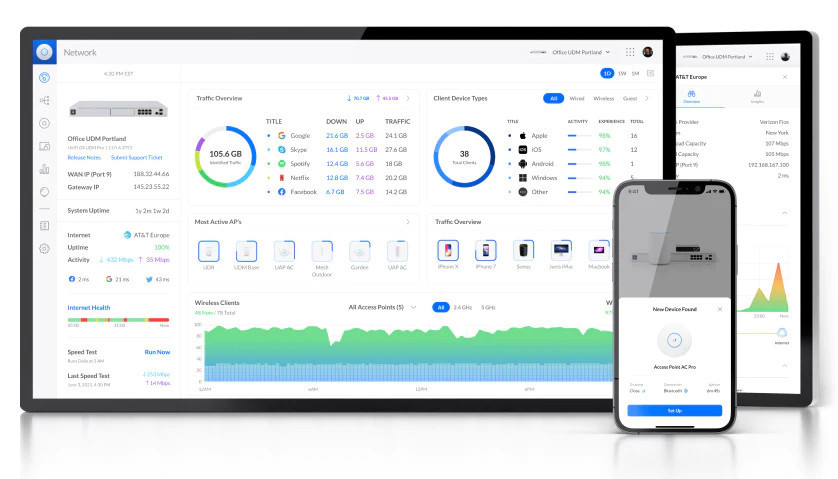

Lisaks pakub Switch Pro Aggregation täiustatud toiteallika rikke kaitset, kui see on ühendatud SmartPower Redundant Power Systemiga (USP RPS müüakse eraldi). Seda lülitit saab jälgida või konfigureerida kõikjalt võimsa ja intuitiivse UniFi Network veebirakenduse ja mobiilirakenduse abil.
Haldatakse UniFi Networki rakendusega: Versioon 6.1.25 ja uuemad.
Võrdle sarnaste toodetega
| Ethernet Pordid | |||
| 9 x 1 Gbps | |||
| PoE välja standardid | |||
| 8 x 802.3af (PoE), 802.3at (PoE+), 802.3bt | |||
| SFP pordid | |||
| 28 x 10G SFP+, 4 x 25G SFP28 | 8 x 10G SFP+ | ||
| Juhtimine | |||
| Ethernet | Ethernet | Ethernet | |
| Max. energiatarve | |||
| 100 W | 30 W | 240 W | |
| Töötemperatuur | |||
| -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | |
| Mõõde | |||
| 442 x 325 x 44 mm | 443 x 120 x 44 mm | 442 x 480 x 44 mm | |
| Kaal | |||
| 4.7 kg | 2.74 kg | 9 kg | |
| Paigaldamise meetod | |||
| RackMount | RackMount | RackMount | |
| Ethernet Pordid | 9 x 1 Gbps | ||
| PoE välja standardid | 8 x 802.3af (PoE), 802.3at (PoE+), 802.3bt | ||
| SFP pordid | 28 x 10G SFP+, 4 x 25G SFP28 | 8 x 10G SFP+ | |
| Juhtimine | Ethernet | Ethernet | Ethernet |
| Max. energiatarve | 100 W | 30 W | 240 W |
| Töötemperatuur | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C |
| Mõõde | 442 x 325 x 44 mm | 443 x 120 x 44 mm | 442 x 480 x 44 mm |
| Kaal | 4.7 kg | 2.74 kg | 9 kg |
| Paigaldamise meetod | RackMount | RackMount | RackMount |

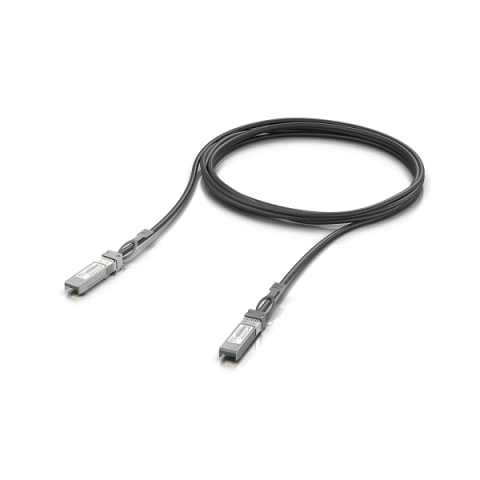

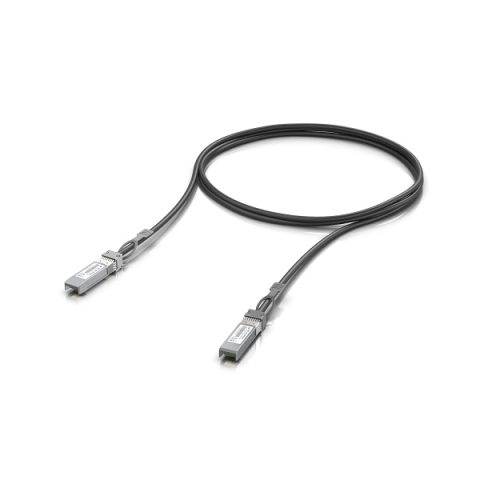

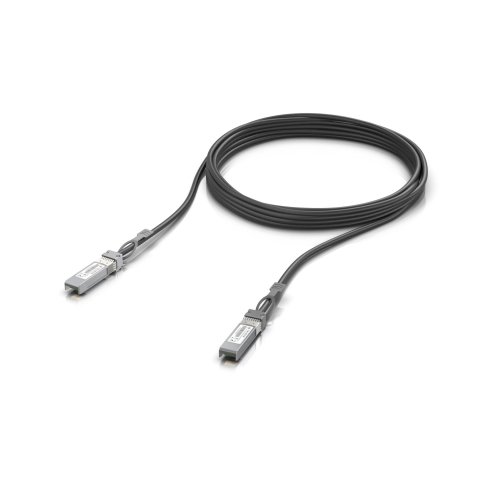

Ühilduvad tooted
Spetsifikatsioonid
Liidesed
PoE välja standardid
ilma PoE
SFP pordid
(28) 10G SFP+, (4) 25G SFP28
Juhtimine
Ethernet
Võim
Võimsuse meetod
AC/DC Adapter, USP RPS alalisvoolu sisend
Toide
Sisemine PSU
Toetatud sisendpinge
100 - 240 V AC
Max. energiatarve
100 W
Füüsikalised Parameetrid
Rack ühikute arv
1U
Värv
Hõbe

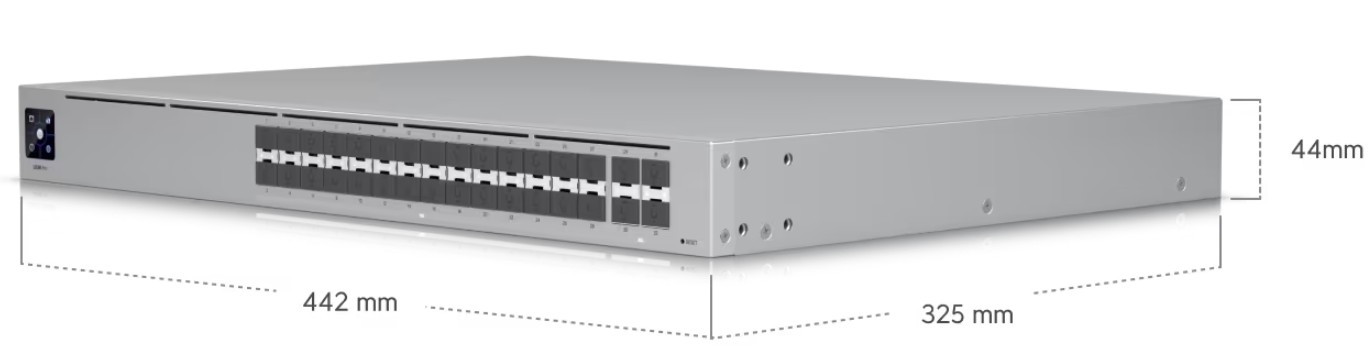

Mõõde
442 x 325 x 44 mm
Kaal
4.7 kg
Töötemperatuur
-5 °C kuni 40 °C
Keskkond
Sise
Paigaldamise meetod
Rack Mount
Kujutegur
Rack-paigaldatud 19"
