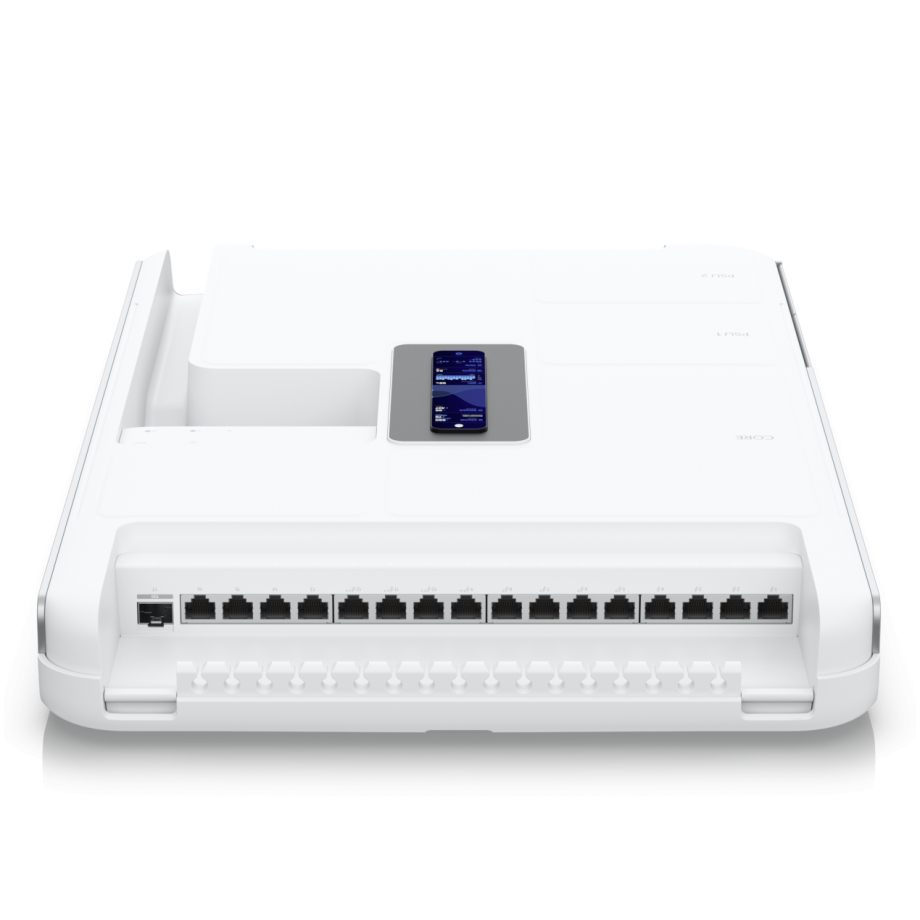

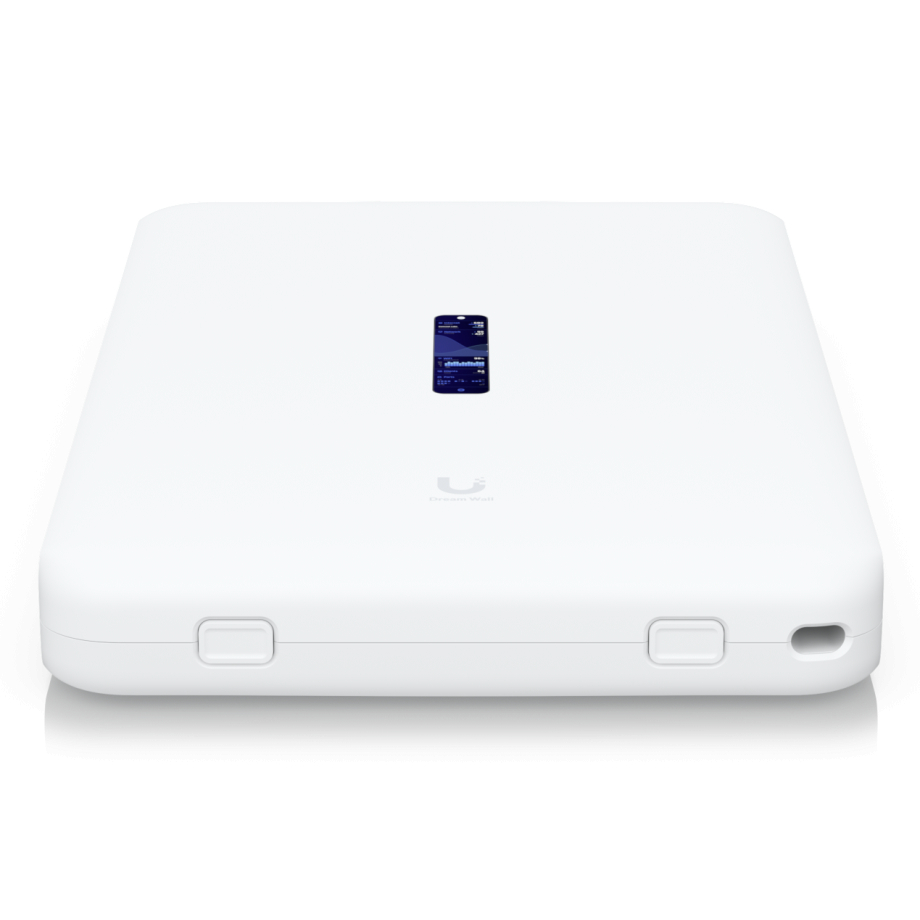

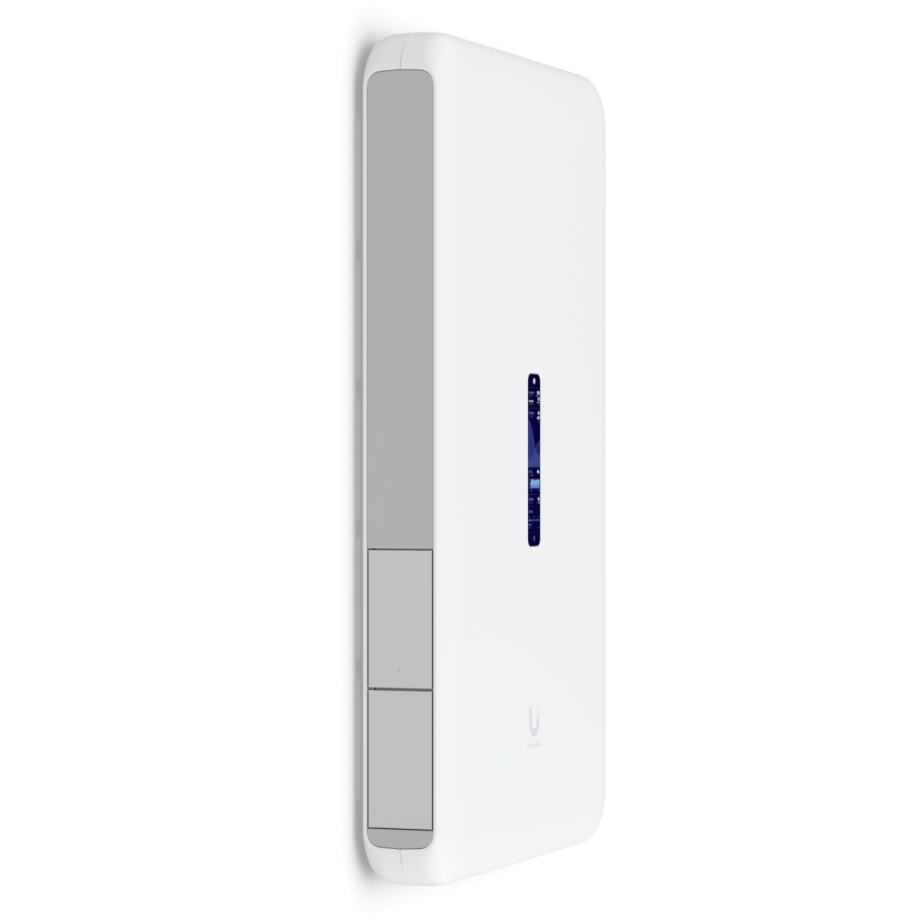

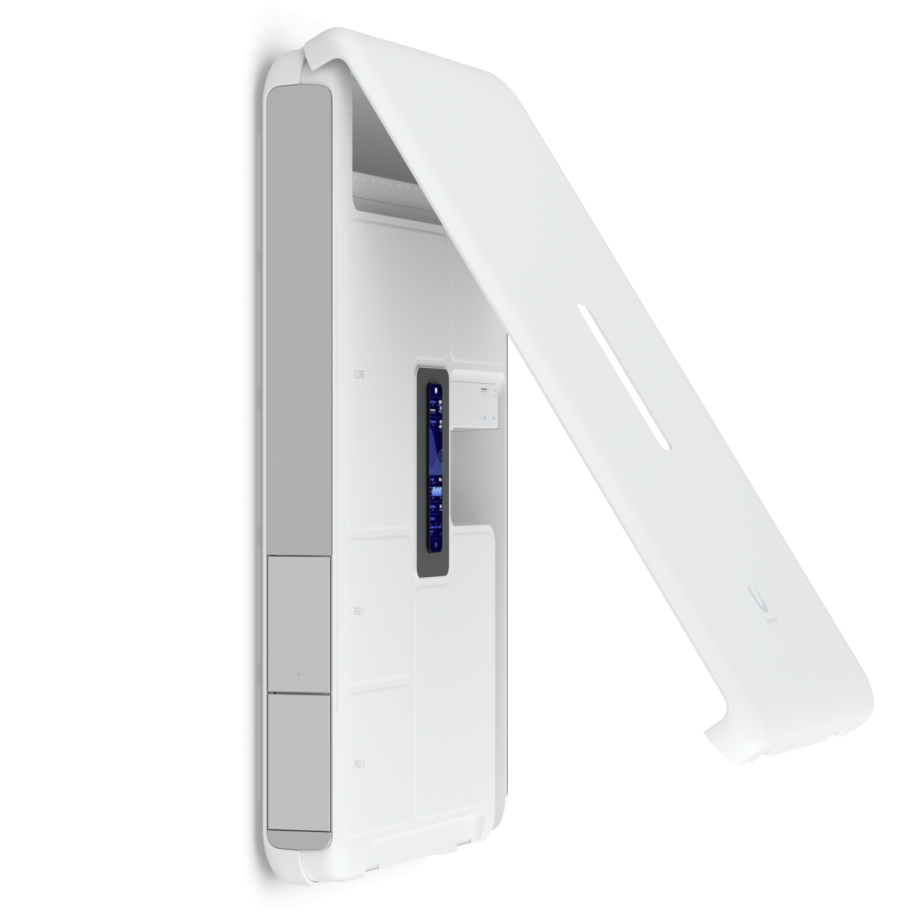

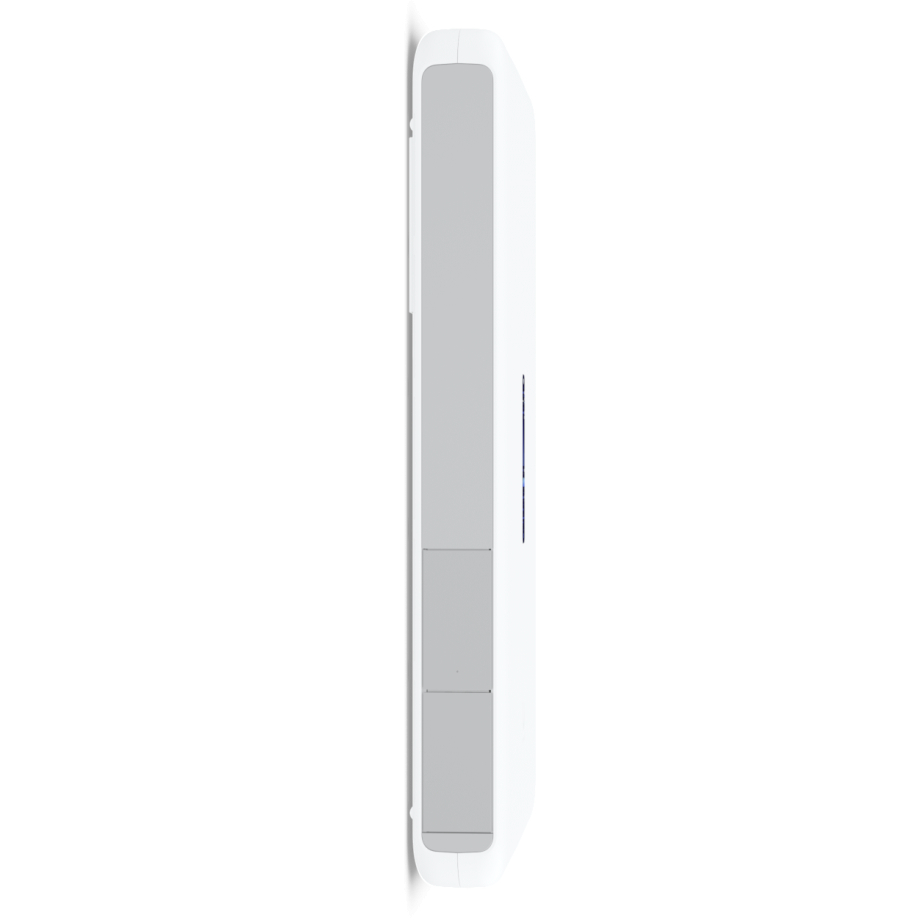

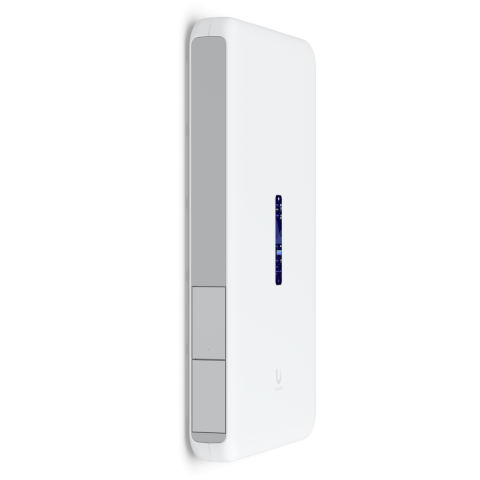

Ubiquiti UniFi Dream Wall
Ubiquiti Elite Distributor
laost otsas
?
-8% 1094.24 €
1003.89 €
-8% 1094.24 €
1003.89 €
Ubiquiti Elite Distributor
Saadaolevad alternatiivid
Detailne kirjeldus

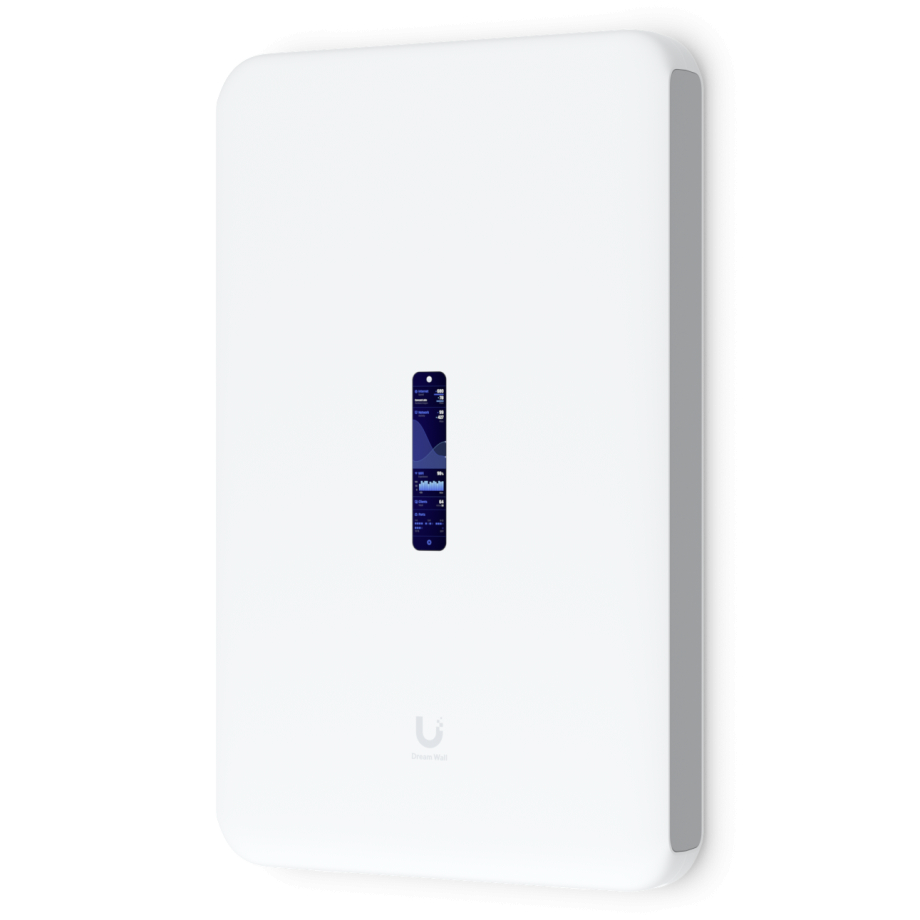

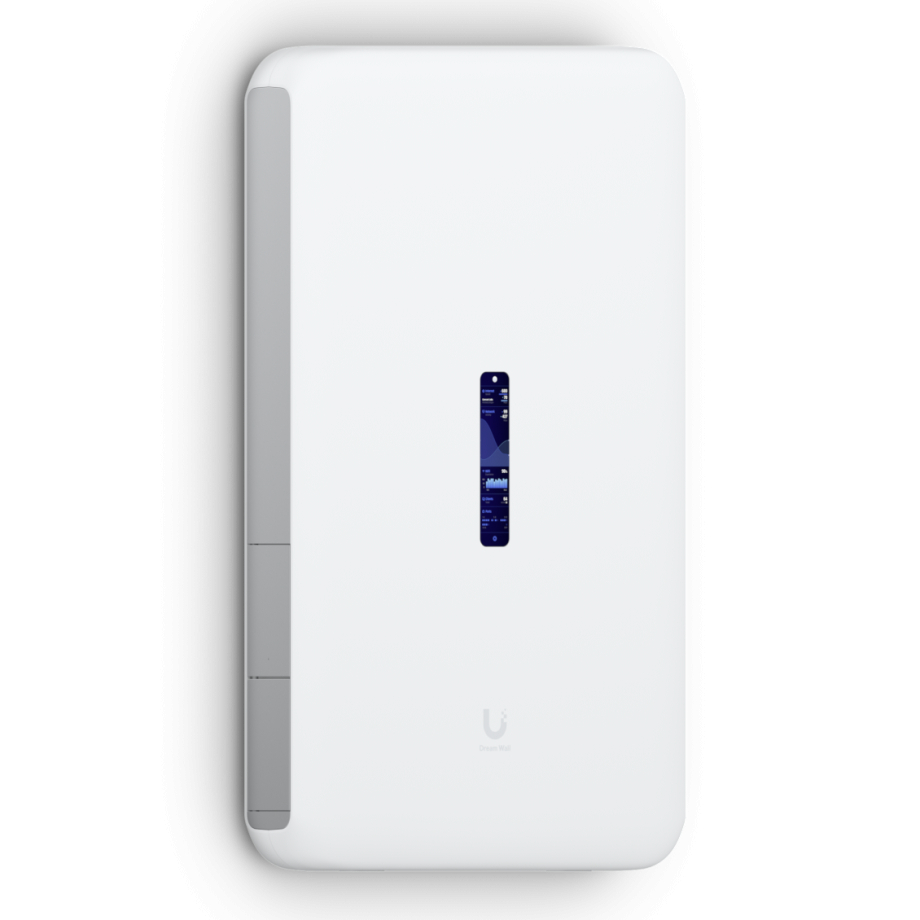

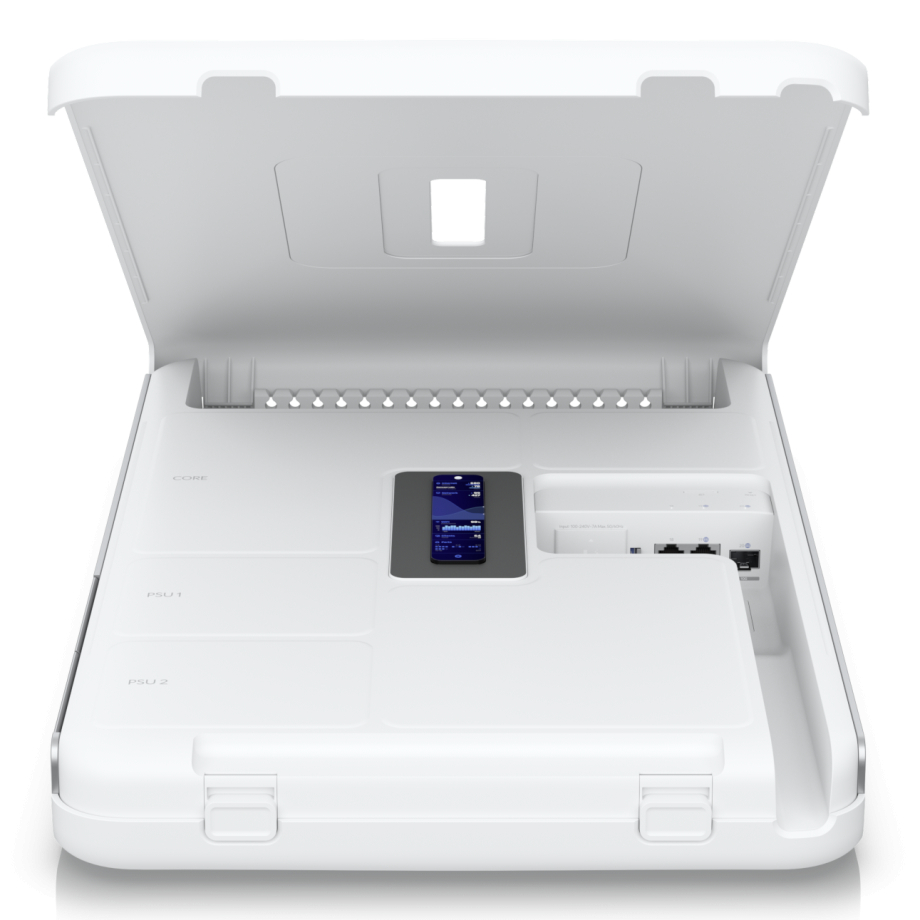

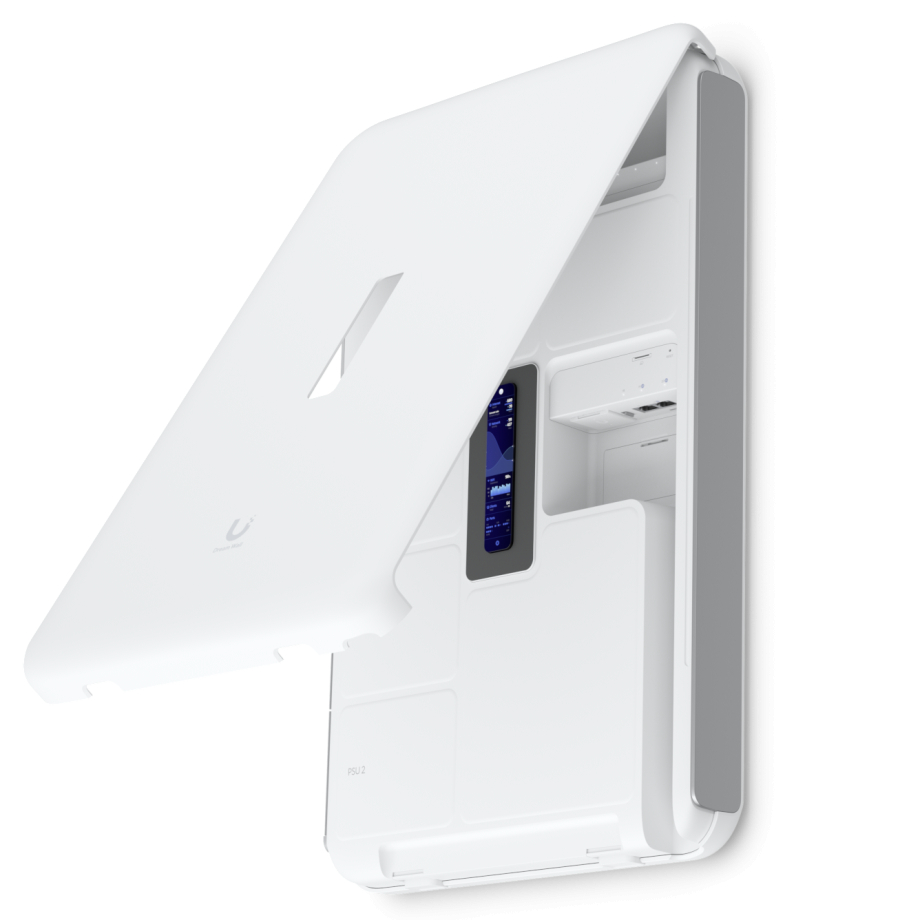

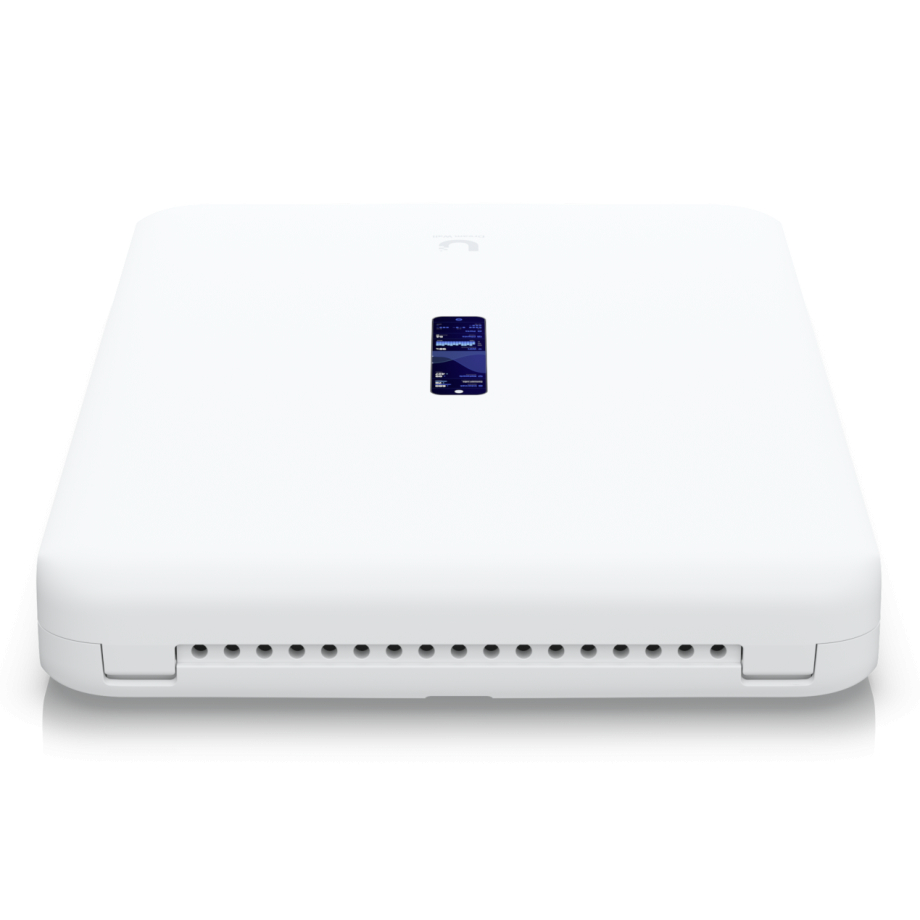

Seinale paigaldatav UniFi OS Console koos turvavärava, nelja 802.3bt PoE++ porti sisaldava PoE-lülitiga, suure jõudlusega pääsupunktiga ja võrguvideoregistraatoriga.

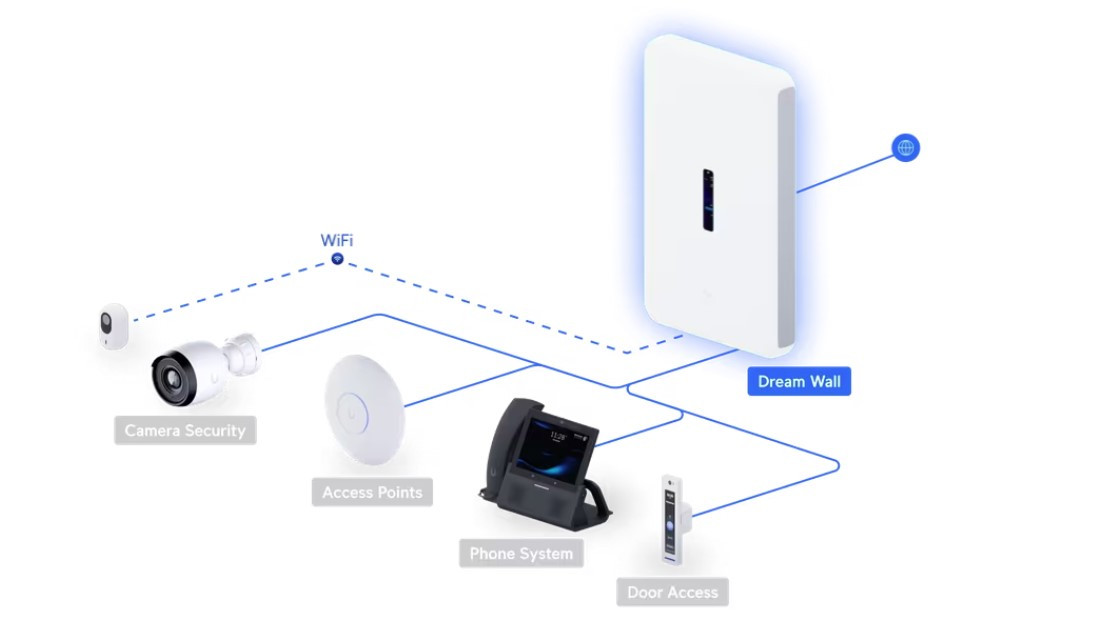

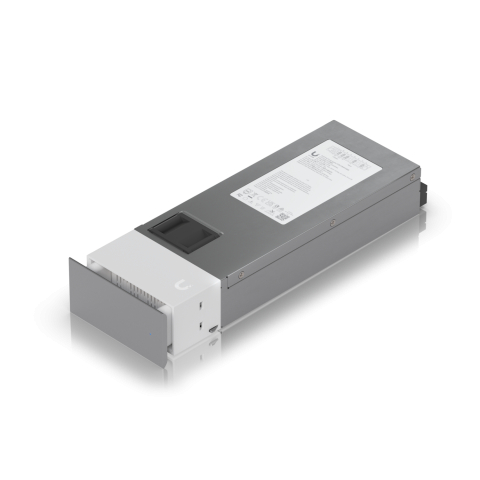

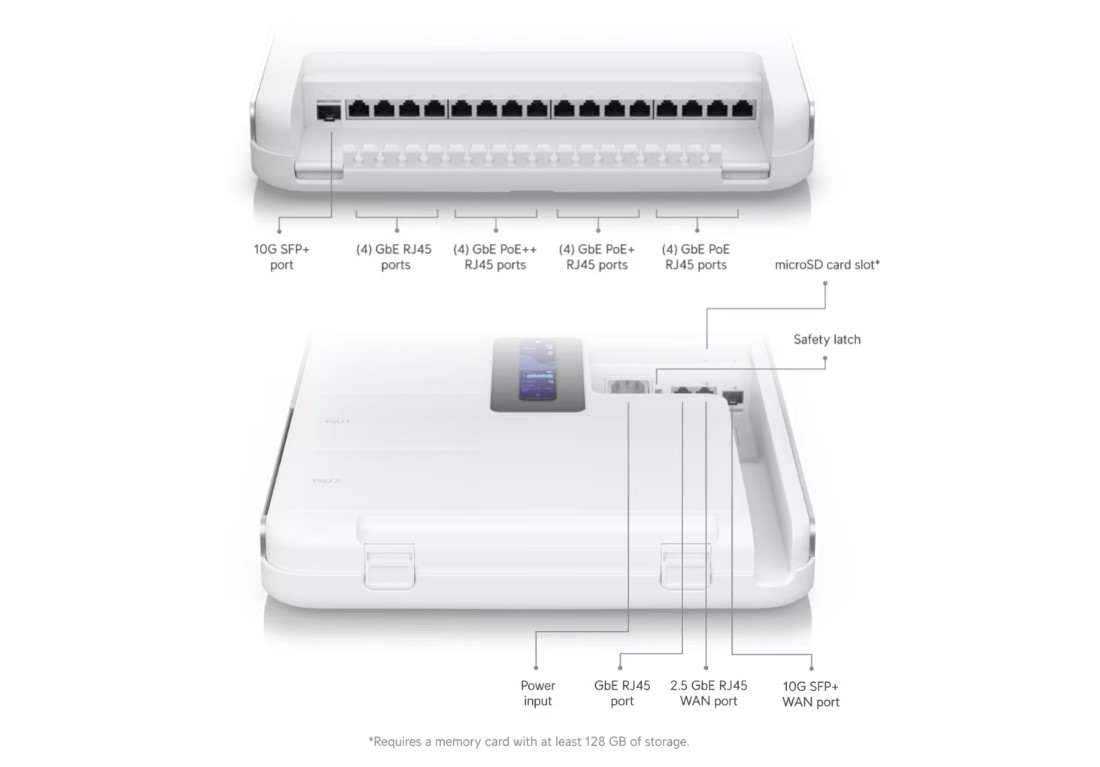

Dream Wall on võimas, seinale paigaldatav UniFi OS Console, mis on mõeldud eraldiseisvaks, ruumi säästvaks kasutuselevõtu hostingulahenduseks. See funktsioonirikas järgmise põlvkonna konsool on varustatud (17) GbE RJ45-portiga, sealhulgas (12) PoE-väljundiga[(4) PoE, (4) PoE+ ja (4) PoE++], (3) mitme gigabiti WAN/LAN-portiga ja kahesagedusliku Wi-Fi raadioga, mille summaarne läbilaskevõime on 2,7 Gbps, et anda teile võimekus luua usaldusväärseid ja kiireid võrke, mis toetavad erinevaid kohalikke ja kaugkliente. Dream Wallil on ka 1,3-tolline LCM-värviline puuteekraan mugavaks oleku jälgimiseks ja sisseehitatud Bluetooth-haldusraadio, et kiirendada seadistamise ja konfigureerimise protsessi UniFi Networki veebi- või mobiilirakenduse kaudu. UDM on varustatud Micro SIM-pesaga, mis nõuab vähemalt 128 GB mälukaarti. Dream Wall on varustatud ühe eelpaigaldatud toiteplokiga.
Võrdle sarnaste toodetega
| Traadita võrgu standard | |||||
| 802.11a/b/g/n/ac/ax, Wi-Fi 6 | 802.11a/b/g/n/ac/ax, Wi-Fi 6 | 802.11a/b/g/n/ac, 802.11ac Wave2 | |||
| MIMO | |||||
| 2.4GHz 2x2, 5GHz 4x4, | 2.4GHz 4x4, 5GHz 4x4 | 2.4GHz 2x2, 5GHz 4x4 | |||
| 2.4GHz raadiosagedus | |||||
| 300 Mbps | 600 Mbps | 300 Mbps | |||
| 5GHz raadiosagedus | |||||
| 2.4 Gbps | 2.4 Gbps | 1.7 Gbps | |||
| Traadita Antenni Sagedusvahemik Ja Võimendus | |||||
| 2.4 - 2.4 (GHz) 5.9 (dBi), 5 - 5 (GHz) 6 (dBi) | 2.4 - 2.4 (GHz) 3.4 (dBi), 5 - 5 (GHz) 4.3 (dBi) | 2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 4.5 (dBi) | |||
| Ethernet pordid | |||||
| 17 x 1 Gbps, 1 x 2.5 Gbps | 5 x 1 Gbps | 5 x 1 Gbps | 9 x 1 Gbps | 8 x 1 Gbps, 1 x 2.5 Gbps | |
| SFP pordid | |||||
| 2 x 10G SFP+ | 2 x 10G SFP+ | 2 x 10G SFP+ | |||
| PoE välja standardid | |||||
| 12 x 802.3af (PoE), 802.3at (PoE+), 802.3bt | 2 x 802.3af (PoE) | 8 x 802.3af (PoE), 802.3at (PoE+) | |||
| Kiibikomplekti | |||||
| Quad-Core ARM® Cortex ® -A57 at 1.7 GHz | Dual-Core® Cortex® A53 at 1.35 GHz | Arm Cortex-A57 Quad-Core at 1.7 GHz | Quad ARM Cortex-A57 Core at 1.7 GHz | Quad-Core ARM® Cortex ® - A57 at 1.7 GHz | |
| RAM-i mah | |||||
| 4 GB | 2 GB | 2 GB | 4 GB | 4 GB | |
| Storage mälu | |||||
| 16 GB | 16 GB | 16 GB | 16 GB | ||
| Max. energiatarve | |||||
| 532 W | 19.37 W | 26 W | 33 W | 50 W | |
| Paigaldamise meetod | |||||
| Seinakinnitus | Lauaplaat | Lauaplaat | RackMount | RackMount | |
| Traadita võrgu standard | 802.11a/b/g/n/ac/ax, Wi-Fi 6 | 802.11a/b/g/n/ac/ax, Wi-Fi 6 | 802.11a/b/g/n/ac, 802.11ac Wave2 | ||
| MIMO | 2.4GHz 2x2, 5GHz 4x4, | 2.4GHz 4x4, 5GHz 4x4 | 2.4GHz 2x2, 5GHz 4x4 | ||
| 2.4GHz raadiosagedus | 300 Mbps | 600 Mbps | 300 Mbps | ||
| 5GHz raadiosagedus | 2.4 Gbps | 2.4 Gbps | 1.7 Gbps | ||
| Traadita Antenni Sagedusvahemik Ja Võimendus | 2.4 - 2.4 (GHz) 5.9 (dBi), 5 - 5 (GHz) 6 (dBi) | 2.4 - 2.4 (GHz) 3.4 (dBi), 5 - 5 (GHz) 4.3 (dBi) | 2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 4.5 (dBi) | ||
| Ethernet pordid | 17 x 1 Gbps, 1 x 2.5 Gbps | 5 x 1 Gbps | 5 x 1 Gbps | 9 x 1 Gbps | 8 x 1 Gbps, 1 x 2.5 Gbps |
| SFP pordid | 2 x 10G SFP+ | 2 x 10G SFP+ | 2 x 10G SFP+ | ||
| PoE välja standardid | 12 x 802.3af (PoE), 802.3at (PoE+), 802.3bt | 2 x 802.3af (PoE) | 8 x 802.3af (PoE), 802.3at (PoE+) | ||
| Kiibikomplekti | Quad-Core ARM® Cortex ® -A57 at 1.7 GHz | Dual-Core® Cortex® A53 at 1.35 GHz | Arm Cortex-A57 Quad-Core at 1.7 GHz | Quad ARM Cortex-A57 Core at 1.7 GHz | Quad-Core ARM® Cortex ® - A57 at 1.7 GHz |
| RAM-i mah | 4 GB | 2 GB | 2 GB | 4 GB | 4 GB |
| Storage mälu | 16 GB | 16 GB | 16 GB | 16 GB | |
| Max. energiatarve | 532 W | 19.37 W | 26 W | 33 W | 50 W |
| Paigaldamise meetod | Seinakinnitus | Lauaplaat | Lauaplaat | RackMount | RackMount |
Ühilduvad tooted
Spetsifikatsioonid
Raadiovõrk
Põlvkond
WiFi 6
Standard
802.11n/ac/ax
MIMO
2.4GHz 2x2, 5GHz 4x4
Sagedus
2.4GHz, 5GHz
2.4GHz raadiosagedus
300 Mbps
5GHz raadiosagedus
2.4 Gbps
Antenn
Antenni Disain
Omni
Traadita Antenni Sagedusvahemik Ja Võimendus
2.4 - 2.4 (GHz) 5.9 (dBi), 5 - 5 (GHz) 6 (dBi)
Liidesed
RJ45 pordid
PoE sadamate arv
12 tk
PoE välja standardid
802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++)
SFP pordid
(2) 10G SFP+
Juhtimine
Ethernet, Wi-Fi, Bluetooth
Mälukaardipesa
1 microSD
Süsteemi Spetsifikatsioon
Kiibikomplekti
Quad-Core ARM® Cortex ® -A57 at 1.7 GHz
RAM-i maht
4 GB
Storage mälu
16 GB
Toetab microSD-kaarti kuni
512 GB
Võim
Võimsuse meetod
AC/DC Adapter
Toide
Sisemine PSU
Toetatud sisendpinge
100 - 240 V AC
Max. energiatarve
532 W
Füüsikalised Parameetrid
Värv
Valge
Materjal
Tsingitud teras, Alumiinium, Polükarbonaat
Mõõde
549 x 342 x 62 mm
Kaal
10 kg
Töötemperatuur
-10 °C kuni 40 °C
Keskkond
Sise
Paigaldamise meetod
