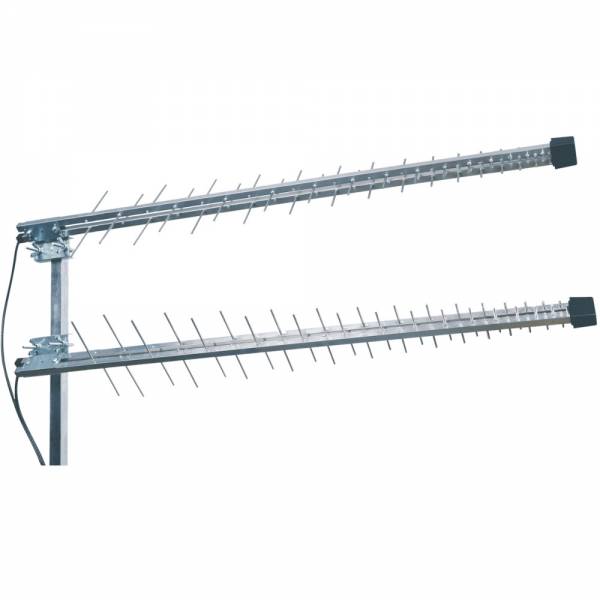

Iskra 5G antenn, 698-3800 MHz, 7.5-10.5 dBi, kaabel 5m

laos
?
86.76
laos
?
86.76

Tootja osa number

P-60-5G-5

Garantii

?
24 kuu

EAN

0708747439144

Kategooria

Spetsifikatsioonid

Antenn

Antenni Disain

Yagi
Traadita Antenni Sagedusvahemik Ja Võimendus

2.400 - 2.495 (GHz) 10 (dBi)
Mobiilse Antenni Sagedusvahemik Ja Võimendus

0.698 - 0.862 (GHz) 10 (dBi), 1.710 - 1.880 (GHz) 10 (dBi), 2.50 - 2.70 (GHz) 10 (dBi), 3.30 - 3.80 (GHz) 8 (dBi)
Mobiilse Antenni Võimendus

10 dBi, 8 dBi
Kiirguse laius

44 ° Vertikaalne, 52 ° Horisontaalne
Kaabli Pikkus

5 m
VSWR

< 1.6
Impedants

50 Ω
F/B suhe

> 23 dB
Maksimaalne Sisendvõimsus

50 W

Pistik

RF pistikud

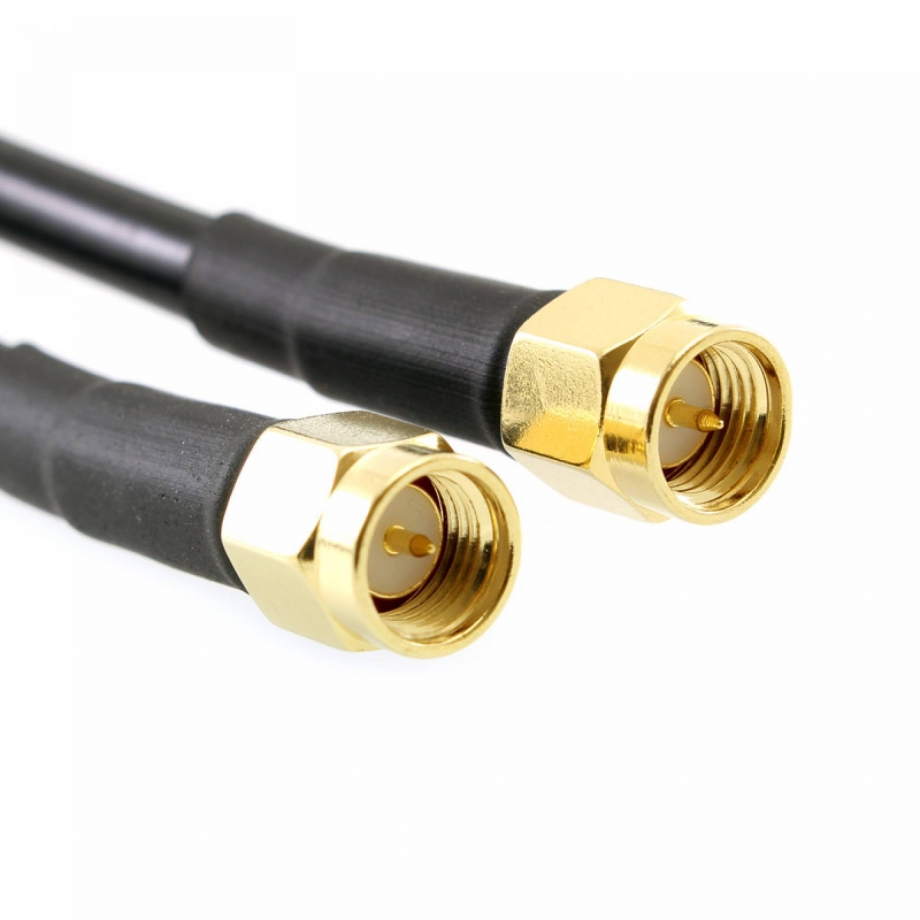

(2) SMA Male

Füüsikalised Parameetrid

Mõõde

L=1100 mm
Keskkond

Välistingimustes
Paigaldamise meetod

Arvustused ja hinnangud

5
/ 5
3 arvustust
3 arvustust
Emīls Eizenbergs,2023.10.26
Excellent antennas, tripled my internet speed, x polarity is very good.
Verified, collected by GETIC SIA
Avatardiablo,2023.02.24
good pruct. fast delivery
Verified, collected by GETIC SIA
kund,2023.08.18

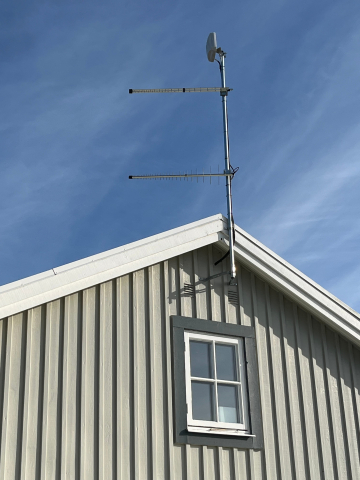

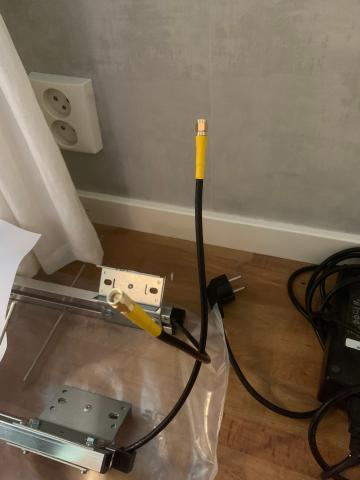

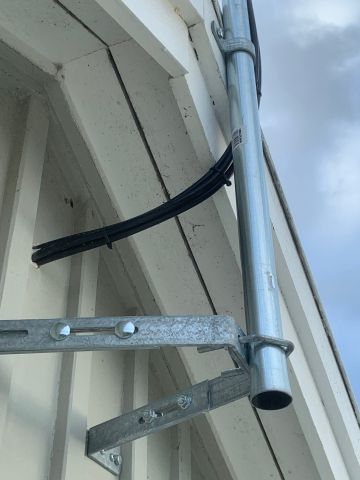

Excellent long range 5G-antenna. I did cut off the standard cable @ 30cm and replaced the rest of cable with LMR400 3m cables. Cause the location has really weak coverage and i needed less signal loss. Before these antennas i had 70/15Mbit on the same spot with the same modem (using only one Xpol v3 antenna). After installation and pointing i got a stable 5G connection with a average speed @ 750/30Mbit (top noted speed during testning = 870/40Mbit). Thats a huge signal improvment and speed increase. And my 5G cell Tower is 1750m away without free sight. On my iphone 13 in the house i get at most 70/10Mbit so these antennas did the trick.
Verified, collected by GETIC SIA
