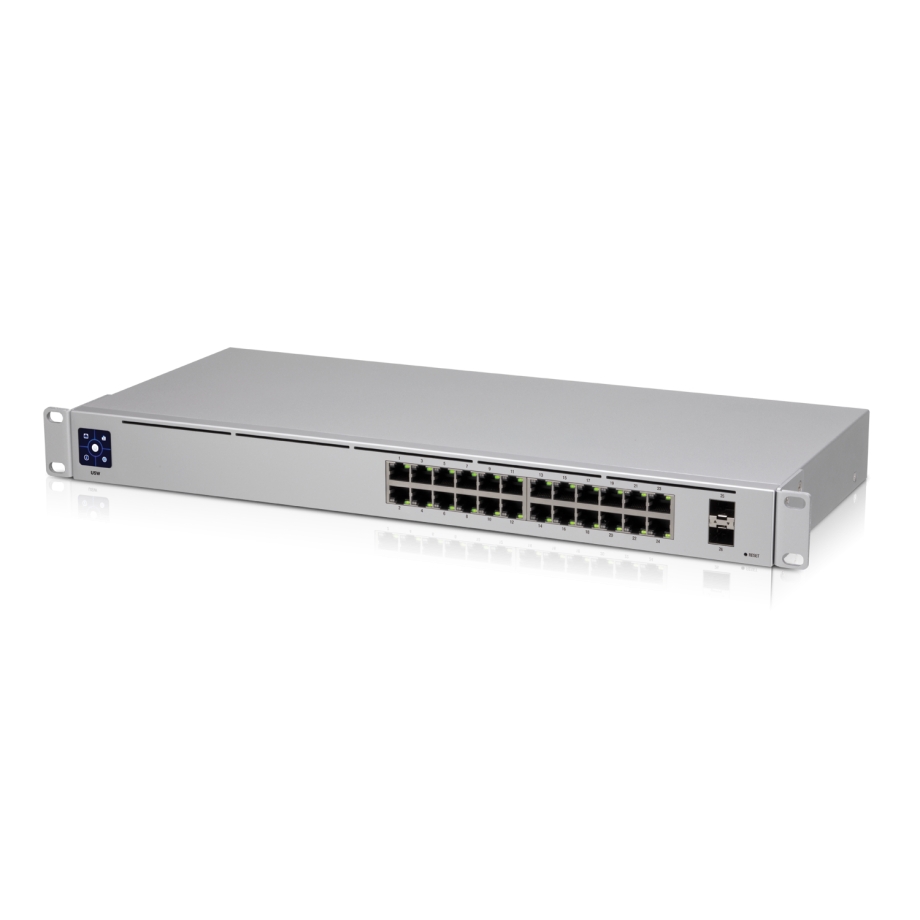

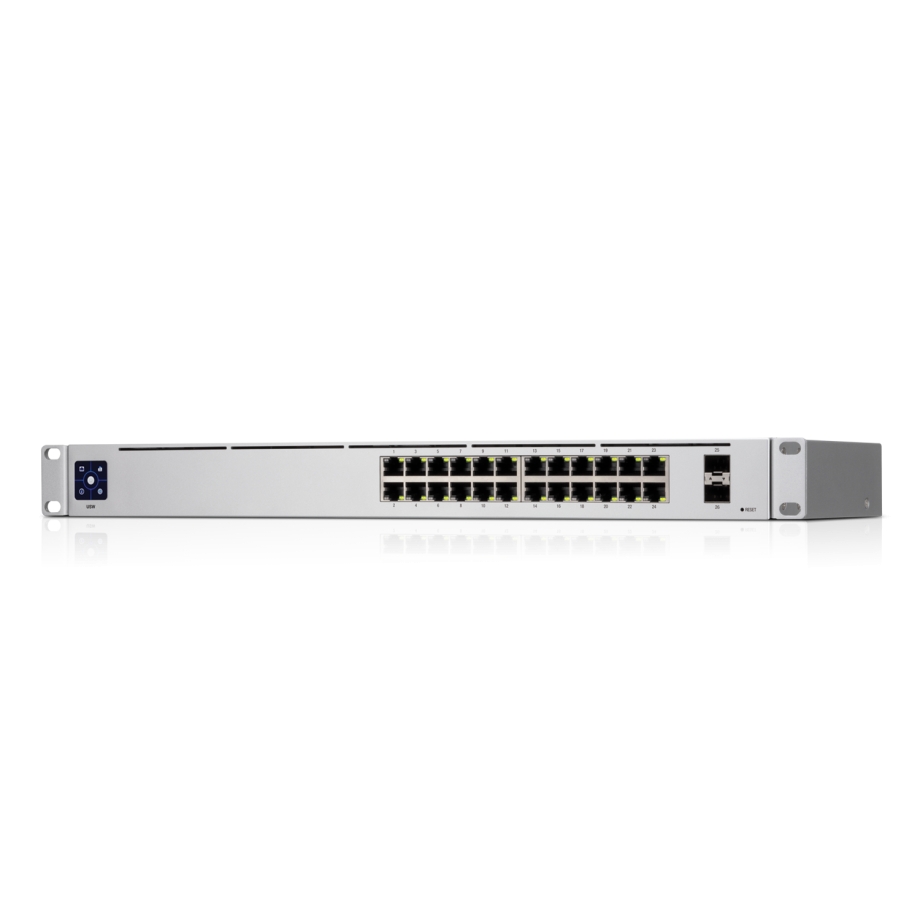

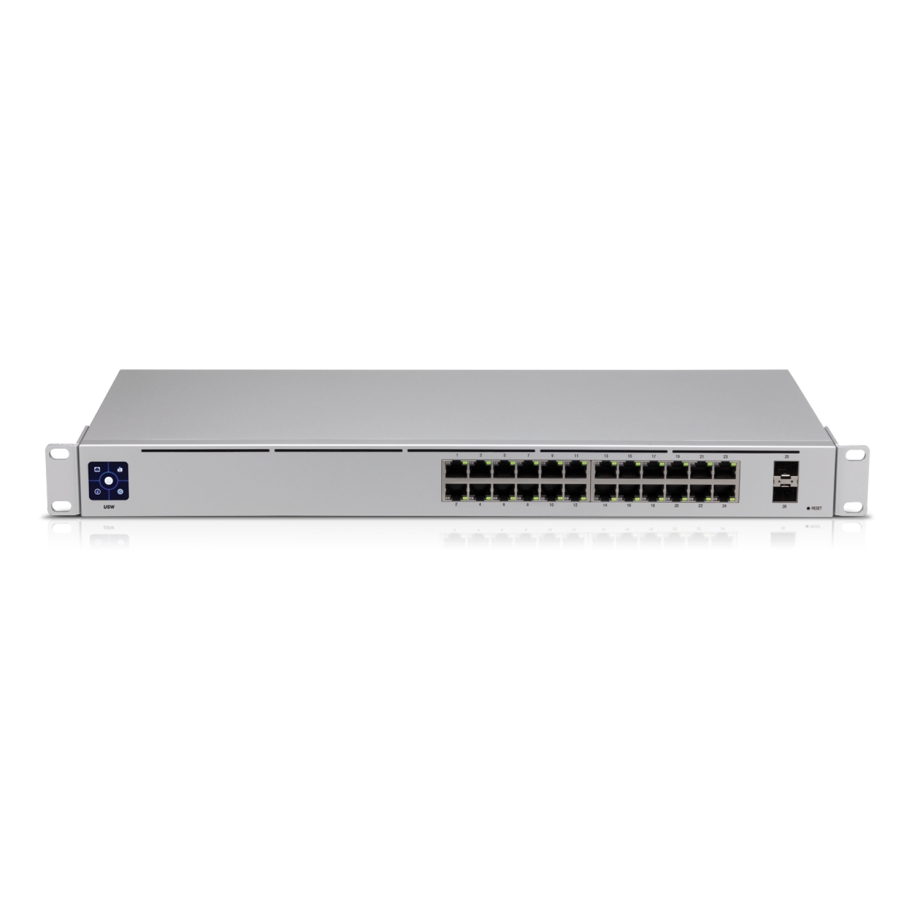

Ubiquiti UniFi Switch Standard 24
Ubiquiti Elite Distributor
laost otsas
?
249.65 €
249.65 €
Ubiquiti Elite Distributor
Saadaolevad tootevalikud
Saadaolevad alternatiivid
Detailne kirjeldus

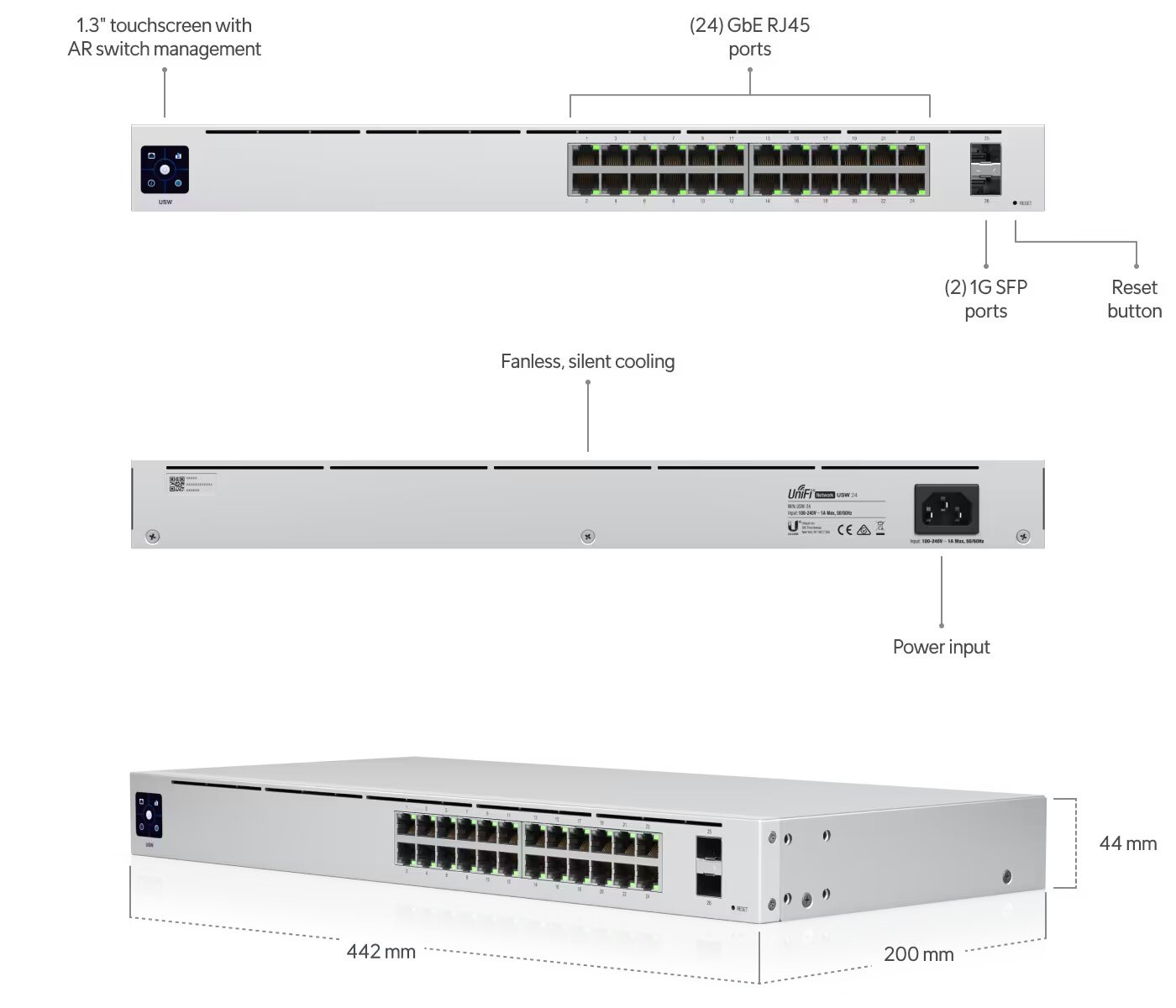

USW-24 on hallatav Layer 2 kommutaator, millel on (24) Gigabit Ethernet porti ja (2) SFP porti. Selle kompaktne 7,9-tolline sügavus ja ventilaatorita disain võimaldavad seda paigutada mis tahes tööruumi ning 1,3-tolline puuteekraan annab teavet praeguse lüliti seisundi ja kiireks diagnoosimiseks vajaliku teabe kohta.

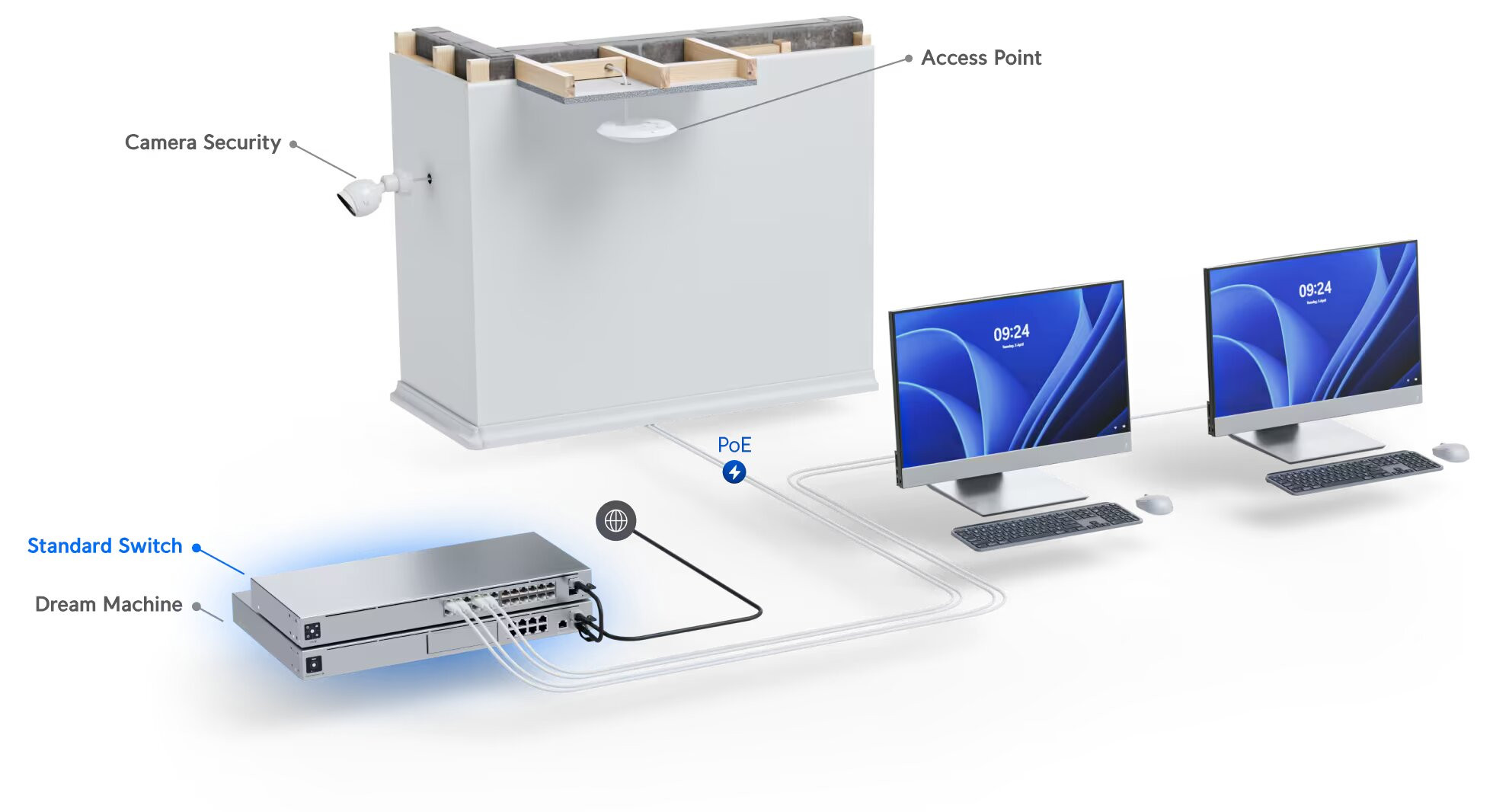

Paigutusskeem

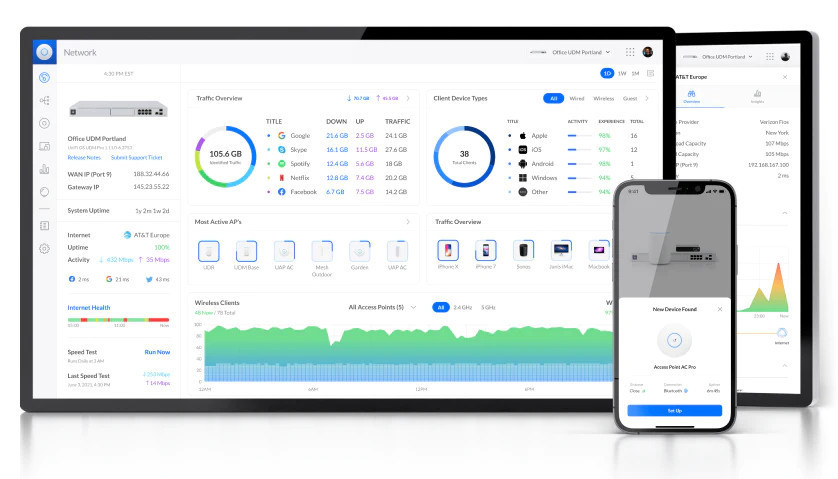

Töötab koos UniFi võrgurakendusega
UniFi võrgurakenduse kaudu hallatav ja konfigureeritav UniFi mobiilirakenduse toega USW-24 pakub ulatuslikku komplekti täiustatud Layer 2 lülitusprotokolle ja funktsioone, sealhulgas töörežiimi (lülitus, peegeldamine või koondamine) pordi kohta. UniFi võrgurakendus ja mobiilirakendus võimaldavad administraatoritel konfigureerida ja jälgida praktiliselt kõiki lülitusfunktsioone graafilises kasutajaliideses ükskõik kust.
Täiendatud reaalsus lülitite haldamiseks
Tööstuse esimene AR (augmented reality) lülitite haldamine lihtsustab võrgu muutusi.
Võrdle sarnaste toodetega
| Ethernet Pordid | |||||
| 24 x 1 Gbps | 16 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 48 x 1 Gbps | |
| PoE välja standardid | |||||
| 8 x 802.3af (PoE), 802.3at (PoE+) | 16 x 802.3af (PoE), 802.3at (PoE+) | 48 x 802.3af (PoE), 802.3at (PoE+ | |||
| SFP pordid | |||||
| 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 4 x 1G SFP | 4 x 1G SFP | |
| Juhtimine | |||||
| Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | |
| Max. energiatarve | |||||
| 25 W | 60W | 120 W | 40 W | 240 W | |
| Töötemperatuur | |||||
| -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -15 °C to 40 °C | -5 °C to 40 °C | |
| Mõõde | |||||
| 443 x 200 x 44 mm | 442.4 x 200 x 43.7 mm | 442.4 x 200 x 43.7 mm | 443 x 285 x 44 mm | 442.4 x 285 x 43.7 mm | |
| Kaal | |||||
| 2.79 kg | 2.89 kg | 3.09 kg | 3.99 kg | 4.61 kg | |
| Paigaldamise meetod | |||||
| RackMount | RackMount | RackMount | RackMount | RackMount | |
| Keskkond | |||||
| Sise | Sise | Sise | Sise | Sise | |
| Ethernet Pordid | 24 x 1 Gbps | 16 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 48 x 1 Gbps |
| PoE välja standardid | 8 x 802.3af (PoE), 802.3at (PoE+) | 16 x 802.3af (PoE), 802.3at (PoE+) | 48 x 802.3af (PoE), 802.3at (PoE+ | ||
| SFP pordid | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 4 x 1G SFP | 4 x 1G SFP |
| Juhtimine | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet |
| Max. energiatarve | 25 W | 60W | 120 W | 40 W | 240 W |
| Töötemperatuur | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -15 °C to 40 °C | -5 °C to 40 °C |
| Mõõde | 443 x 200 x 44 mm | 442.4 x 200 x 43.7 mm | 442.4 x 200 x 43.7 mm | 443 x 285 x 44 mm | 442.4 x 285 x 43.7 mm |
| Kaal | 2.79 kg | 2.89 kg | 3.09 kg | 3.99 kg | 4.61 kg |
| Paigaldamise meetod | RackMount | RackMount | RackMount | RackMount | RackMount |
| Keskkond | Sise | Sise | Sise | Sise | Sise |
Spetsifikatsioonid
Liidesed
RJ45 pordid
(24) 1 Gbps
PoE välja standardid
ilma PoE
SFP pordid
(2) 1G SFP
Juhtimine
Ethernet
Võim
Toide
Sisemine PSU
Toetatud sisendpinge
100 - 240 V AC
Max. energiatarve
25 W
Füüsikalised Parameetrid
Värv
Hõbe
Materjal
Metall
Mõõde
443 x 200 x 44 mm
Kaal
2.79 kg
Töötemperatuur
-5 °C kuni 40 °C
Keskkond
Sise
Kujutegur
Rack-paigaldatud 19"
Rack ühikute arv
1U
Paigaldamise meetod
Rack Mount
