Kaubamärk
Tootja osa number
PR1US540
Garantii
?
24 kuu
EAN
4779051840632

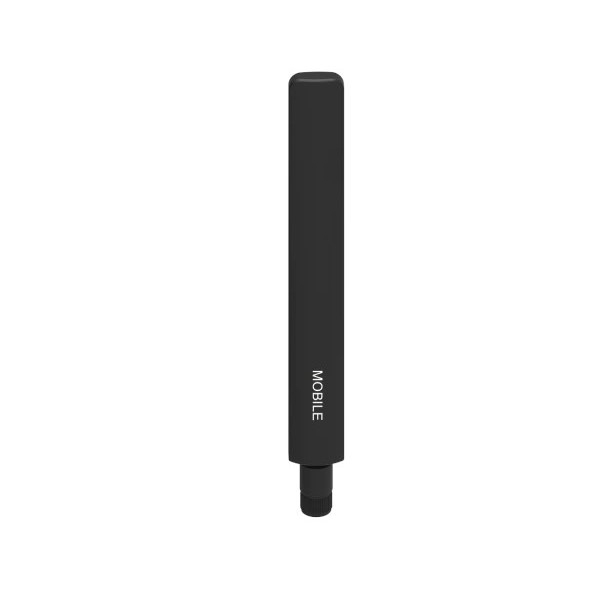

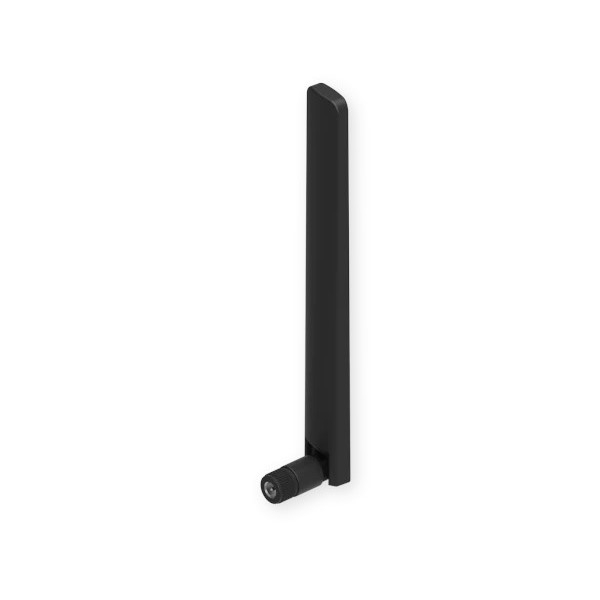

Teltonika 5G Mobile SMA Antenna
Certified Teltonika Engineers
Official Teltonika Distributor
laos
?
4.33 €
4.33 €
Certified Teltonika Engineers
Official Teltonika Distributor
Detailne kirjeldus
Tehnilised andmed
Ühilduvad tooted
Spetsifikatsioonid
Mobiilsidevõrk
Mobiilsidevõrgu genereerimine
Antenn
Antenni Disain
Omni
Mobiilse Antenni Sagedusvahemik Ja Võimendus
0.617 - 0.960 (GHz) 4.5 (dBi), 1.41 - 1.61 (GHz) 4.5 (dBi), 1.71 - 2.69 (GHz) 4.5 (dBi), 3.3 - 7.125 (GHz) 4.5 (dBi)
Mobiilse Antenni Võimendus
4.5 dBi, 4.5 dBi, 4.5 dBi, 4.5 dBi
Polarisatsioon
Lineaarne
VSWR
< 3
Impedants
50 Ω
Pistik
RF pistikud
(1) SMA Male
Füüsikalised Parameetrid
Värv
Must
Sissepääsu kaitse kood
IP33
Kaal
0.024 kg
Töötemperatuur
-40 °C kuni 85 °C
Keskkond
Sise
Paigaldamise meetod
Kruvi
Pakend Sisaldab
Ühikud
1 tk
