Toote nimi
QuMax XR LTE kõrge bänd RUT240/950/955/X09/X11 jaoks
Garantii
?
24 kuu
Tootja osa number
AXRLH
EAN
5907772035467
QuMax XR High Band LTE-antenn Teltonika RUT240/950/955/X09/X11 jaoks
- Suunatud LTE-antenn kuni 12 dBi võimendusega pikamaa ühenduseks tugijaamani; sobib hästi püsivateks tööstuspaigaldisteks.

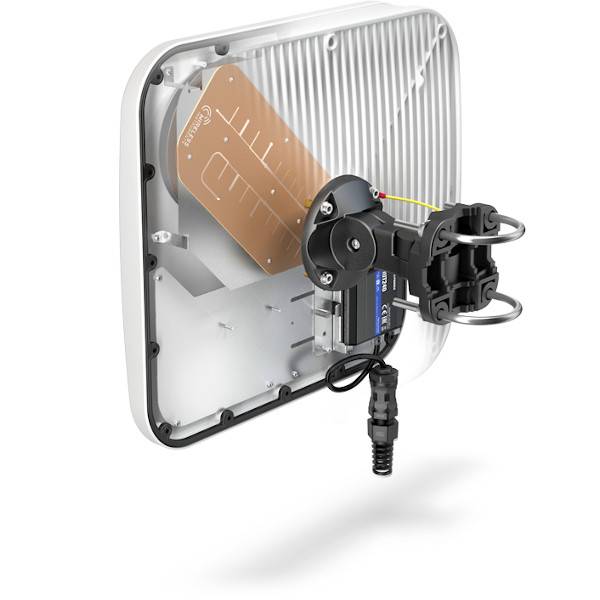

- Mõeldud Teltonika RUT240/950/955/X09/X11 ruuteritele, mis paigaldatakse vastupidavasse IP67 korpusesse, et kaitsta seadet välis- ja tööstuskeskkonnas.
- High Band versioon toetab LTE ribasid 7, 15, 16, 30, 38, 40, 41 ja 53 ning ka riba 69 ja teisi LTE ribasid vastavalt spetsifikatsioonile.
- QuMax XR on QuWirelessi võimsaim suunatud LTE-antenn, loodud suurema leviulatuse ja usaldusväärse ühenduse jaoks kaugetes asukohtades.

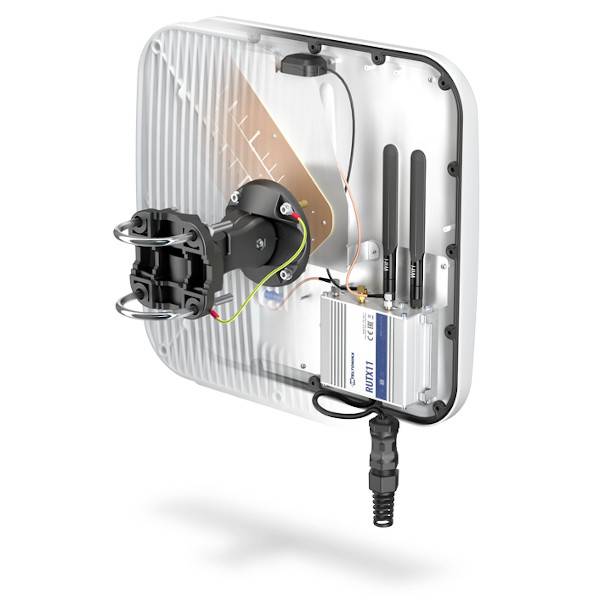

- Korpuse sees on ruumi originaalsete Teltonika GPS- ja Wi‑Fi-antennide paigaldamiseks, et lahendus oleks puhtam ja paremini integreeritud.
146.68 €
laost otsas
?
146.68 €
laost otsas
?
Toote saabumine?
?
saabumise kuupäev teadmata
Detailne kirjeldus
Ühilduvad tooted
Spetsifikatsioonid
Antenn
Antenni Disain
Paneel
Mobiilse Antenni Sagedusvahemik Ja Võimendus
0.694 - 0.694 (GHz) 6 (dBi), 2.3 - 2.7 (GHz) 13 (dBi)
Mobiilse Antenni Võimendus
6 dBi, 13 dBi
Polarisatsioon
Kahekordne Kaldus
VSWR
< 2
Impedants
50 Ω
Füüsikalised Parameetrid
Värv
Valge
Materjal
Alumiinium, ABS plastikust, Klaaskiud, Polütetrafluoroetüleen
Sissepääsu kaitse kood
IP67
Mõõde

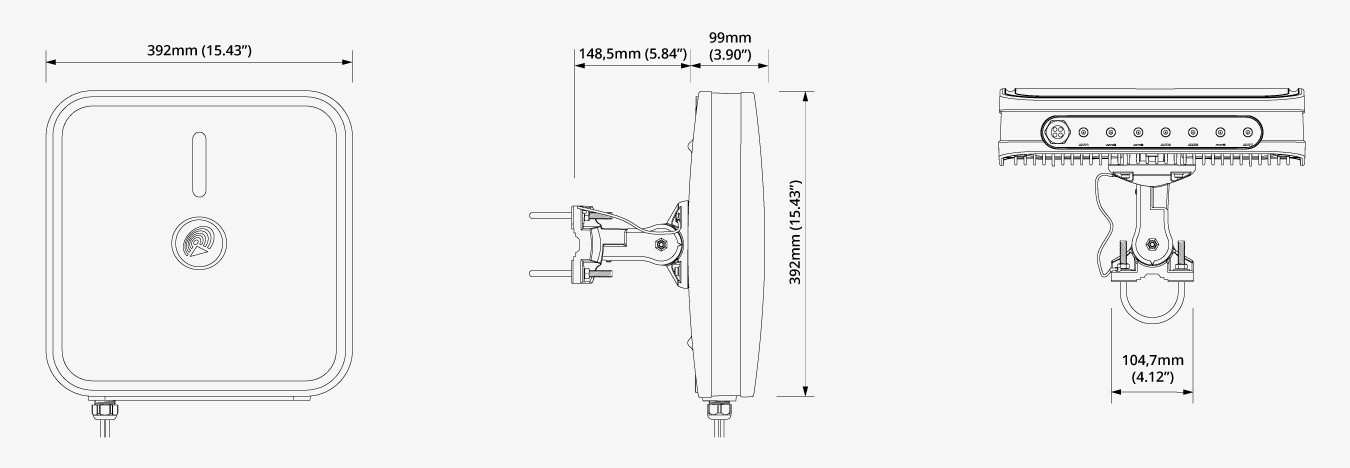

392 x 392 x 99 mm
Kaal
3.72 kg
Töötemperatuur
-40 °C kuni 75 °C
Keskkond
Välistingimustes
Paigaldamise meetod
