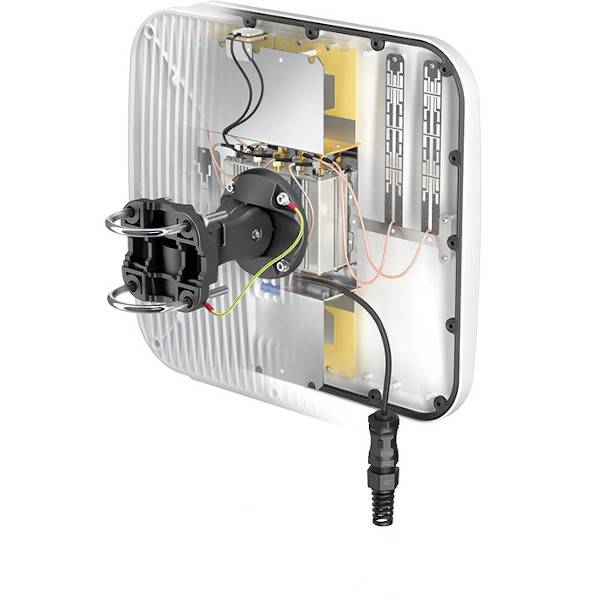

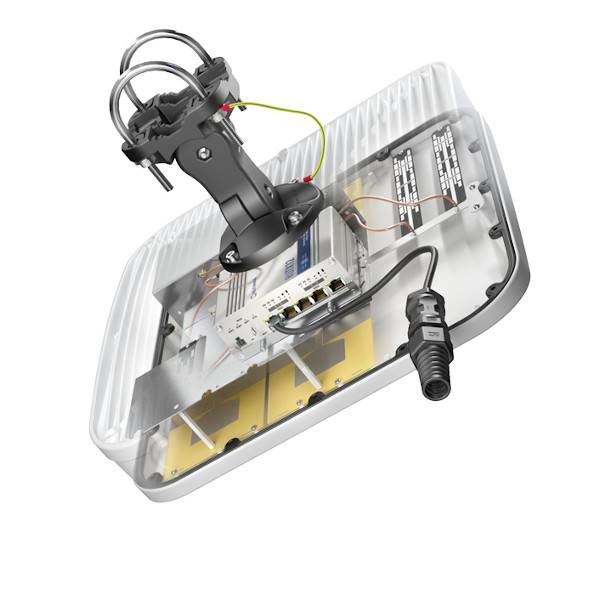

QuMax RUTX12/X14 jaoks

laos
?
159.10
laos
?
159.10

Kaubamärk

Tootja osa number

AX12M

Garantii

?
24 kuu

EAN

5907772035443

Kategooria

Spetsifikatsioonid

Antenn

Antenni Disain

Paneel
Traadita Antenni Sagedusvahemik Ja Võimendus

2.40 - 2.50 (GHz) 6 (dBi), 4.70 - 6.00 (GHz) 7 (dBi)
Mobiilse Antenni Sagedusvahemik Ja Võimendus

0.694 - 0.960 (GHz) 4 (dBi), 1.7 - 2.2 (GHz) 5 (dBi), 2.2 - 2.7 (GHz) 6 (dBi)
Mobiilse Antenni Võimendus

4 dBi, 5 dBi, 6 dBi
Kiirguse laius

90 ° Vertikaalne, 90 ° Horisontaalne
Polarisatsioon

Vertikaalne
VSWR

< 2
Impedants

50 Ω

Füüsikalised Parameetrid

Värv

Valge
Materjal

Alumiinium, ABS plastikust, Klaaskiud, Polütetrafluoroetüleen
Sissepääsu kaitse kood

IP67
Mõõde

392 x 392 x 99 mm
Kaal

3.7 kg
Töötemperatuur

-40 °C kuni 75 °C
Keskkond

Välistingimustes
Paigaldamise meetod

Arvustused ja hinnangud

4
/ 5
1 arvustust
1 arvustust
Piotr Steininger,2023.05.12
This is definitely a quality product. The Plastic isn't cheap, and has no leftover edges from the injection molding process. It has all the antennas that RUTX12/RUTX14 needs. However the space for the router is very tight and some of the attachments cover up ports on either side. i was not able to power the router via PoE. The provided pass-through has some problems accepting a patch cable. So it must be hooked up with an installation cable (cat7) and crimped after part of the gland is slipped onto the cable. There was notable gain in the signal strength, as well as quality and SINR. However, this did not translate to a significant gain in DL or UL speeds. I tested it against the included stubbies and 4 directional antennas, with rather long cables (which result in some signal loss). The directional antennas outperformed this one in upload speed, which is the most critical component for me. I think that in a less rural area, without forrest all around, this product would definitely be very useful.
