Toote nimi

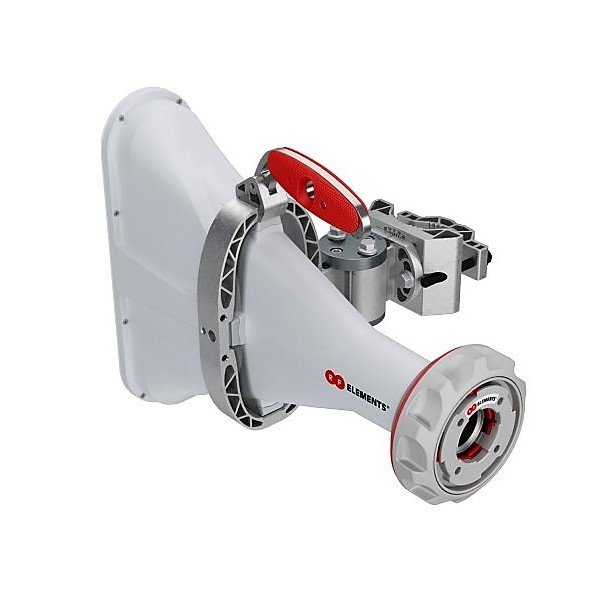

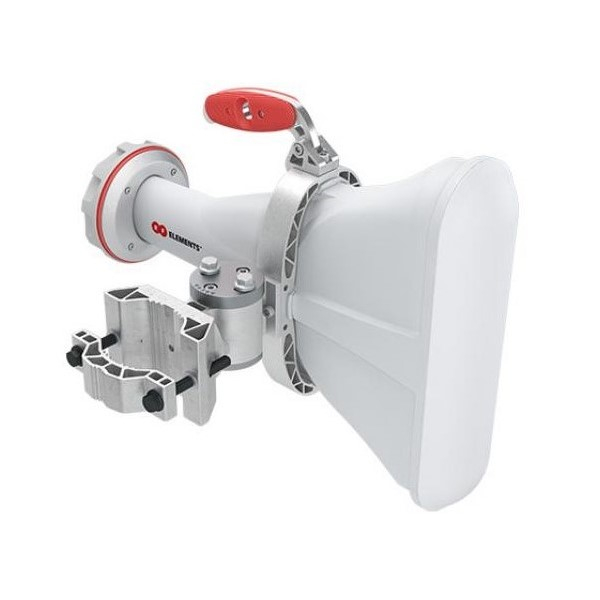

Asymmetrical Beam Antenna 60° with TwistPort Connector
Garantii
?
24 kuu
Tootja osa number
AH60-TP
EAN
0708747440416
Asümmeetriline 60° sektorantenn TwistPort-pistikuga pikamaa traadita ühendusteks
- Asümmeetriline 60° sektorantenn elliptilise kiirgusmustriga parema katvuse jaoks, kui on vaja laiemat asimuuti ja kitsamat kõrgusnurka; sobib hästi pikamaa traadita ühendustele.
- TwistPort™ kiirlukustusega ühendus tagab peaaegu kadudeta raadioside ilma koaksiaalkaabli sumbumiseta, aidates säilitada signaali kvaliteeti ja läbilaskevõimet.
- Stabiilne lairiba töö vahemikus 5180-6000 MHz, suurepärane VSWR ja tasakaalustatud H/V kiired usaldusväärse ühenduse ning tugeva mürakindluse jaoks.
- Loomulikult alla surutud külglobid koondavad energia põhikiirde, parandades mürataluvust ja aidates vähendada häireid tihedates võrkudes.
- Tugev alumiiniumkorpus eraldi kinnitusega kiireks mastile paigaldamiseks ja lihtsaks asimuudi/kõrguse reguleerimiseks; loodud vastu pidama karmidele ilmastikuoludele.
353.45 €
laost otsas
?
353.45 €
laost otsas
?
Saadaolevad alternatiivid
Detailne kirjeldus
Spetsifikatsioonid
Antenn
Antenni Disain
Sarv
Traadita Antenni Sagedusvahemik Ja Võimendus
5.18 - 6 (GHz) 17 (dBi)
Kiirguse laius
60 ° Vertikaalne, 60 ° Horisontaalne
Polarisatsioon
Kahekordne Lineaarne
Pistik
RF pistikud
(1) TwistPort
Füüsikalised Parameetrid
Sissepääsu kaitse kood
IP55
Mõõde
540 x 365 x 160 mm
Kaal
4.7 kg
Töötemperatuur
-35 °C kuni 60 °C
Hinnatud Tuule kiirus
160 km/h
