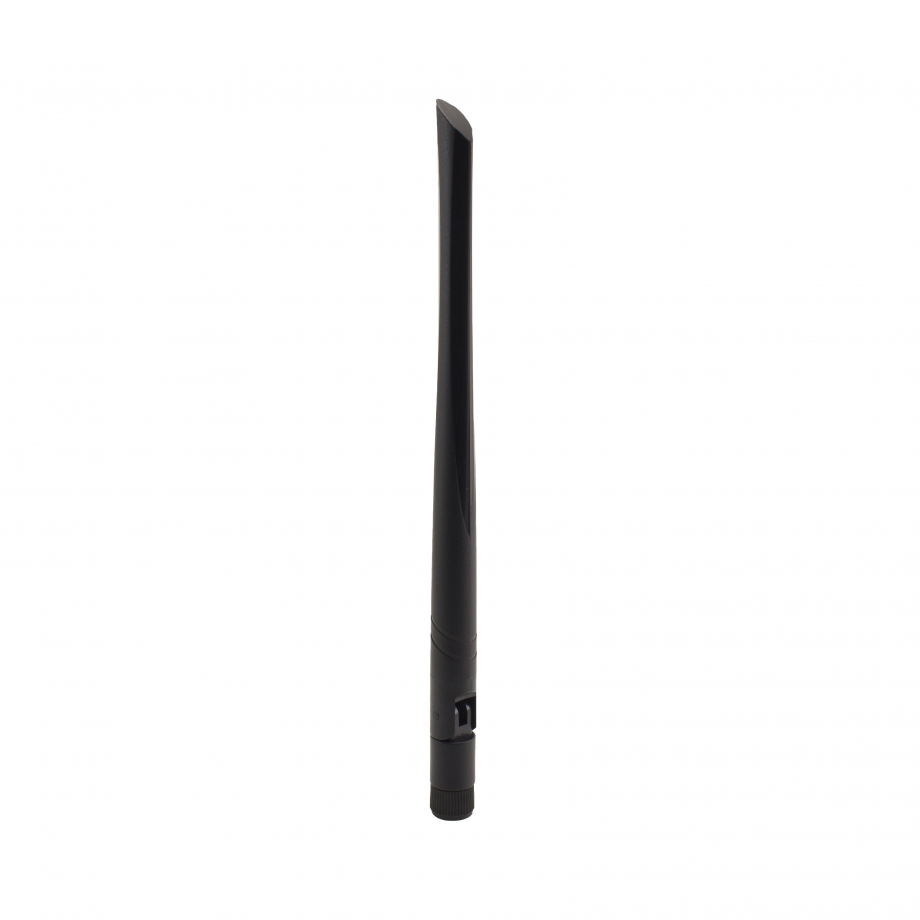

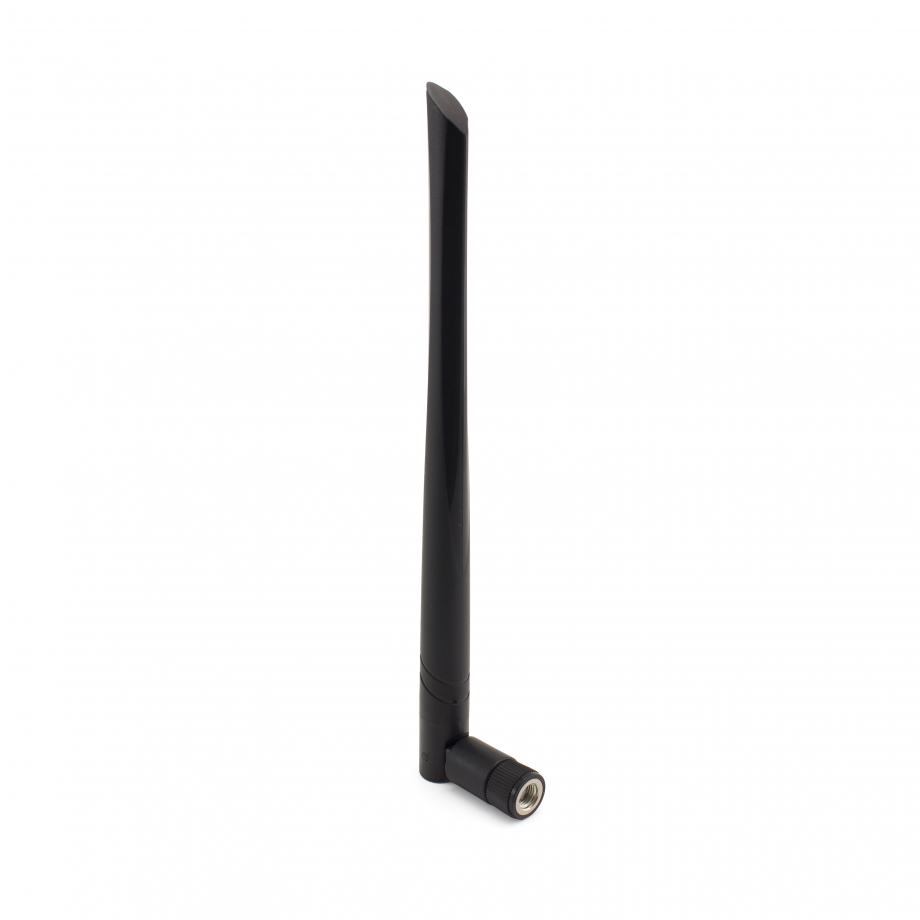

Alfa 2.4/5GHz Siseantenn 5dBi RP-SMA Male
Selle üksuse tootmine on lõpetatud
Saadaolevad alternatiivid
Detailne kirjeldus
Tehnilised andmed
Ühilduvad tooted
Spetsifikatsioonid
Antenn
Antenni Disain
Omni
Traadita Antenni Sagedusvahemik Ja Võimendus
2.4 - 2.483 (GHz) 5 (dBi), 5.15 - 5.875 (GHz) 5 (dBi)
Kiirguse laius
360 ° Vertikaalne
Polarisatsioon
Lineaarne
VSWR
< 1.5
Impedants
50 Ω
Pistik
RF pistikud
(1) RP-SMA Male
Füüsikalised Parameetrid
Mõõde
Ø13 x 196 mm
Töötemperatuur
-40 °C kuni 65 °C
Keskkond
Sise
