Toote nimi

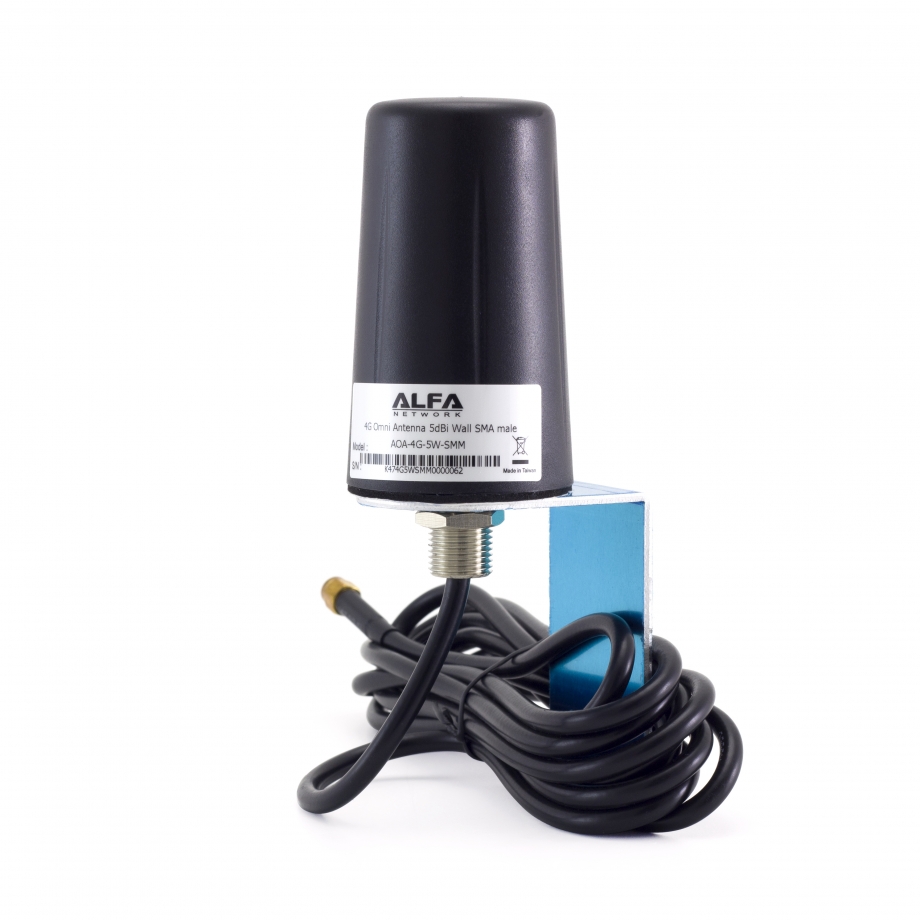

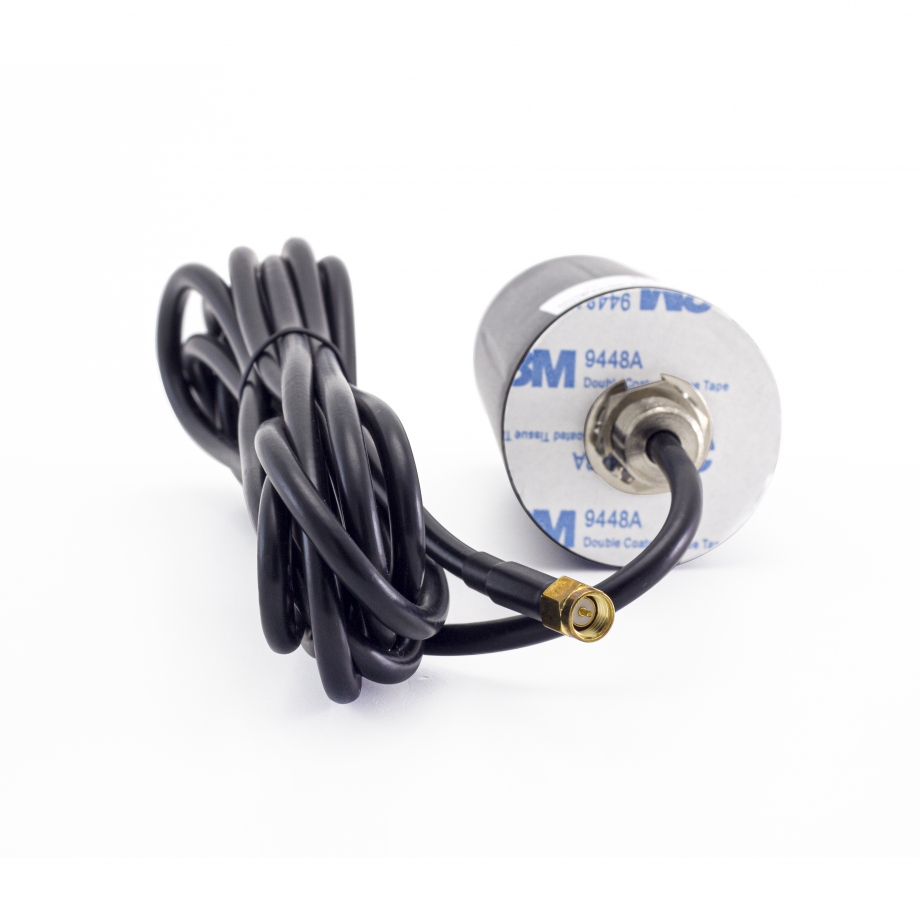

4G LTE Omni antenn 5dbi seinakinnitus, SMA male
Garantii
?
24 kuu
Tootja osa number
AOA-4G-5W-SMM
EAN
4718050305780
ALFA Network 4G LTE välistingimustes omnidirektsionaalne antenn 5 dBi IP67 seinakinnitusega SMA isane
- 5 dBi 4G/LTE omnidirektsioonne antenn parema vastuvõtu jaoks toetatud sagedusalades ja stabiilsema mobiilse ühenduse jaoks õues.
- Toetab 698–960 MHz ja 1710–2700 MHz SISO 1x1 režiimis, pakkudes usaldusväärset LTE jõudlust peamistes mobiilsagedustes.
- Mõeldud välitingimustesse, IP67 kaitse aitab taluda ilma ja hoida signaali stabiilsena.
- SMA male ühendus lihtsaks integreerimiseks ühilduvate seadmetega, sobib hästi ruuteritele, väravatele ja teistele LTE seadmetele.
- ALFA Network AOA-4G-5W-SMM seinakinnitusega antenn omnidirektsionaalse katvusega paindlikuks paigalduseks kodus, ettevõttes või kaugemates kohtades.
37.18 €
laost otsas
?
37.18 €
laost otsas
?
Toote saabumine?
?
saabumise kuupäev teadmata
Saadaolevad alternatiivid
Spetsifikatsioonid
Mobiilsidevõrk
Mobiilsidevõrgu genereerimine
Antenn
Antenni Disain
Omni
Mobiilse Antenni Sagedusvahemik Ja Võimendus
0.698 - 0.96 (GHz) 4 (dBi), 1.71 - 2.7 (GHz) 5 (dBi)
Kiirguse laius
360 °
Polarisatsioon
Vertikaalne
Kaabli Pikkus
3 m
VSWR
< 2
Impedants
50 Ω
Maksimaalne Sisendvõimsus
100 W
Pistik
RF pistikud
(1) SMA Male
Füüsikalised Parameetrid
Värv
Must
Materjal
UV Plastik
Sissepääsu kaitse kood
IP67
Mõõde
Ø48 x 83 mm
Kaal
0.22 kg
Töötemperatuur
-40 °C kuni 80 °C
Keskkond
Välistingimustes
Paigaldamise meetod
Hinnatud Tuule kiirus
60 m/s
