Toote nimi
4G LTE välisantenn 6dBi, mere hinne
Garantii
?
24 kuu
Tootja osa number
AOA-M4G
EAN
4718050305575

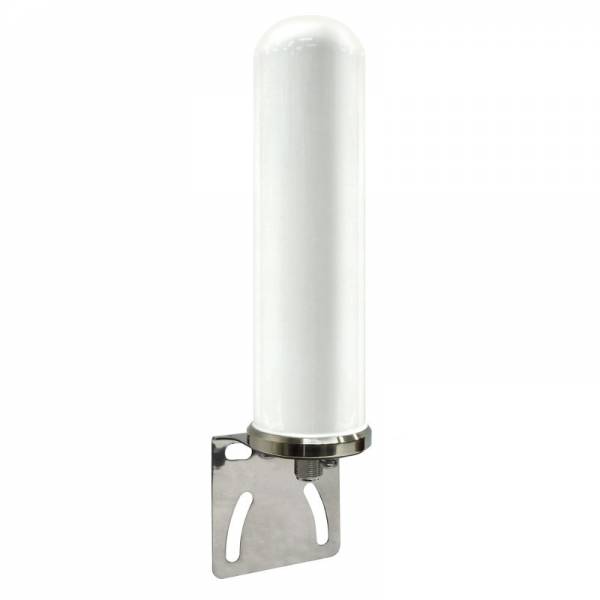

4G LTE väli omni antenn 6dBi – meretaseme suure võimendusega antenn
- Omnidirektsionaalne 4G/LTE välisantenn paremaks mobiilileviks, 4 dBi sagedusel 698–960 MHz ja 6 dBi sagedusel 1710–2700 MHz.
- Mõeldud välistingimustesse, suurema kaitsega vee sissetungi vastu, et LTE ühendus püsiks stabiilne ka nõudlikes oludes.

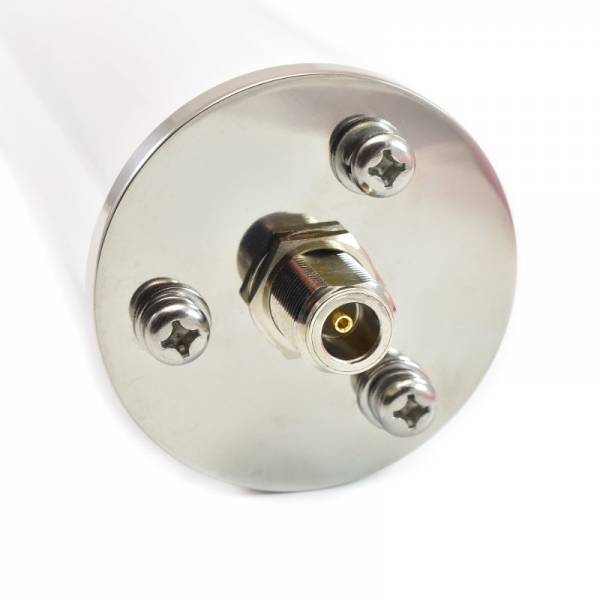

- Veekindel N Female ühendus tagab kindla paigalduse ja usaldusväärse signaaliedastuse paatidel, katustel ja muudes avatud kohtades.
- SISO 1x1 disain pakub lihtsat ja tõhusat antennilahendust ühilduvatele 4G/LTE rakendustele.

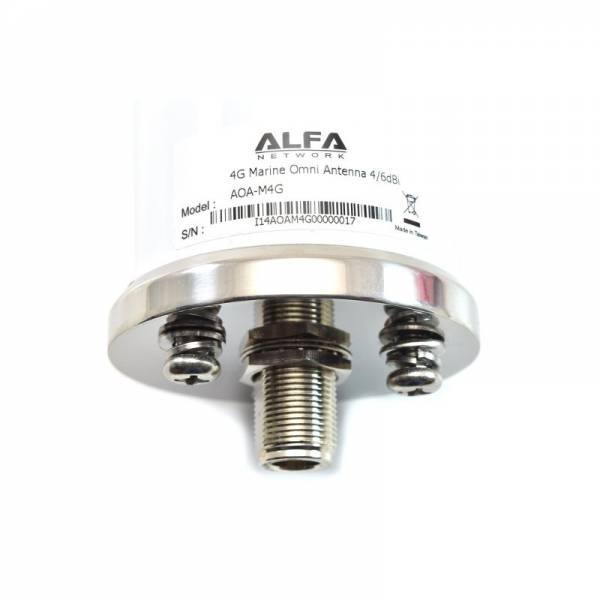

- ALFA Network AOA-M4G on marine grade LTE antenn vastupidavaks välivastuvõtuks ja paremaks leviulatuseks.
59.06 €
Laos
?
59.06 €
Laos
?
Ühilduvad tooted
Spetsifikatsioonid
Mobiilsidevõrk
Mobiilsidevõrgu genereerimine
Antenn
Antenni Disain
Omni
Mobiilse Antenni Sagedusvahemik Ja Võimendus
0.698 - 0.96 (GHz) 4 (dBi), 1.71 - 2.7 (GHz) 6 (dBi)
Mobiilse Antenni Võimendus
4 dBi, 6 dBi

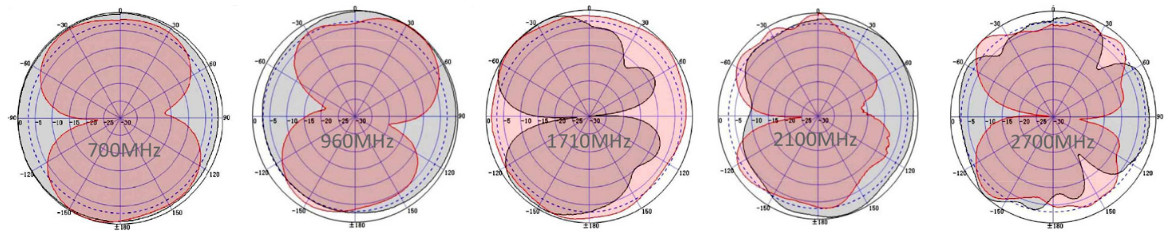

Kiirguse laius
18 ° Vertikaalne, 360 ° Horisontaalne
Polarisatsioon
Vertikaalne
VSWR
< 1.5
Impedants
50 Ω
Maksimaalne Sisendvõimsus
100 W
Pistik
RF pistikud
(1) N Female
Füüsikalised Parameetrid
Värv
Valge
Materjal
Klaaskiud
Sissepääsu kaitse kood
Mereklass
Mõõde
Ø63 x 220 mm
Kaal
1.2 kg
Töötemperatuur
-40 °C kuni 70 °C
Keskkond
Välistingimustes

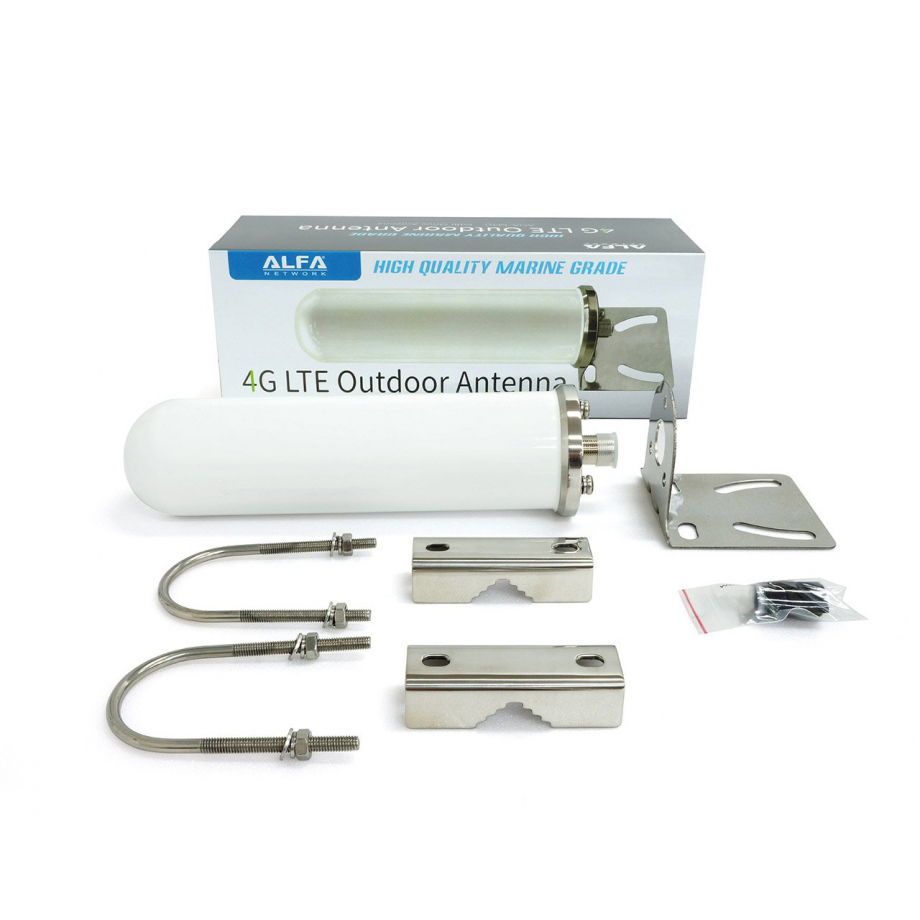

Paigaldamise meetod
Hinnatud Tuule kiirus
60 m/s
